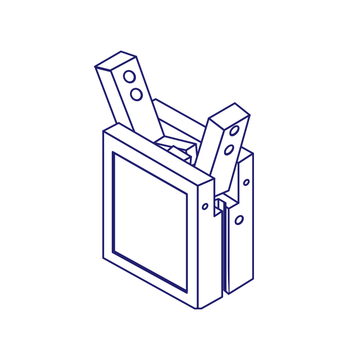

Parker Taiyo SH3-D06 Gripper

Parker Taiyo SH3-D06 Gripper

Regular price
US$0.00
Sale price
US$0.00

Technical Specifications

Structure

Double acting type



5mm

25.5N

Open,close,stroke mm

Actual gripping capacity

Working fluid

Air

Lubrication

Unnecessary(But possible)

Port size

M5X0.8

Operating pressure range

0.3∼0.5MPa

Proof test pressure

0.7MPa

Max.operating frequency

40C.P.M.

Temperature range

-10∼+60Celsius degree(Do not use when frozen)

Tolerance for thread

JIS 6H

Repeat accuracy

±0.05mm(Initial value at tip of finger)

Lubrican

JIS K2213-1(Additive turbine oil ISO VG32) of equivalent

Weight

97g
