MINDMAN
MVHB-220 series

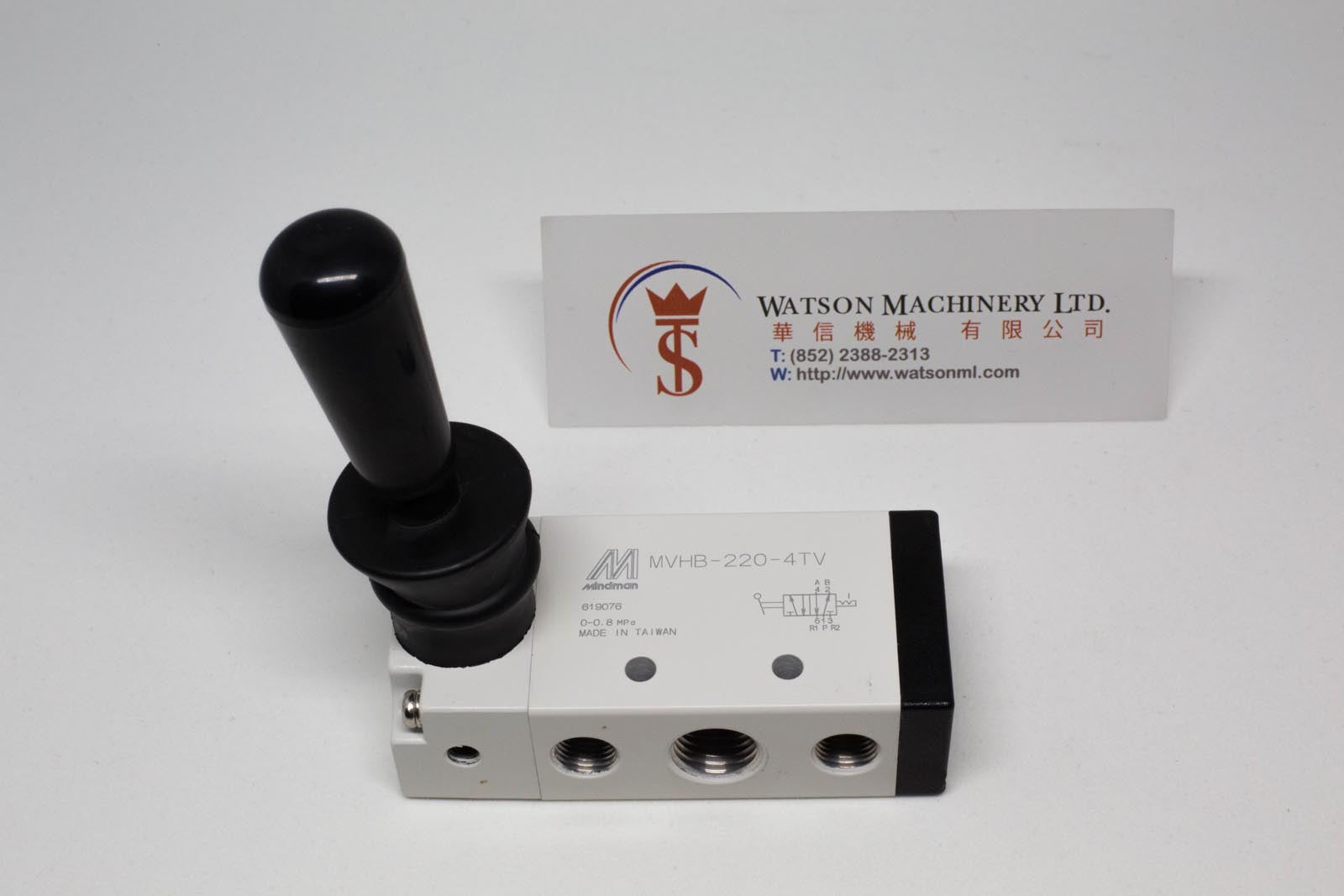

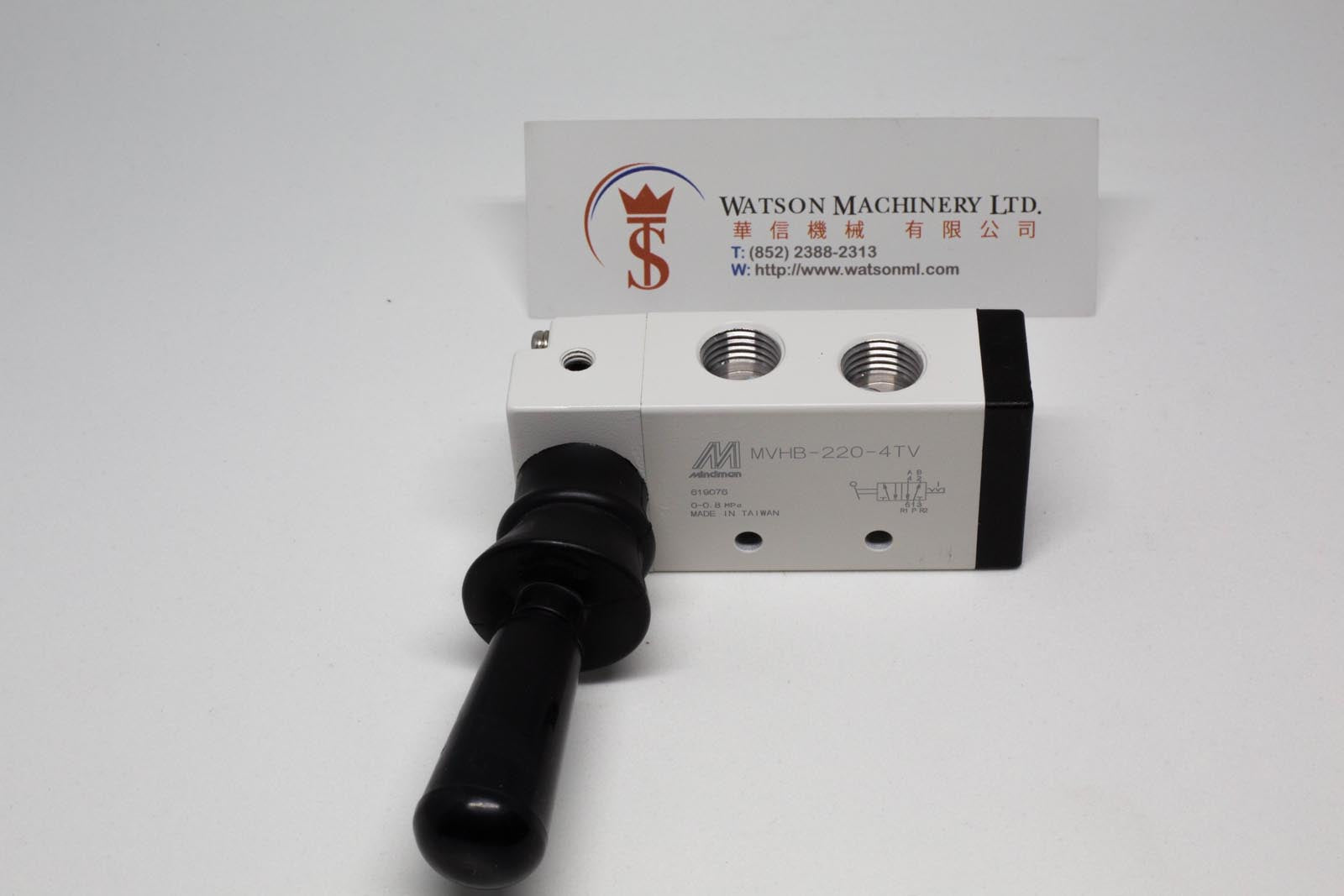

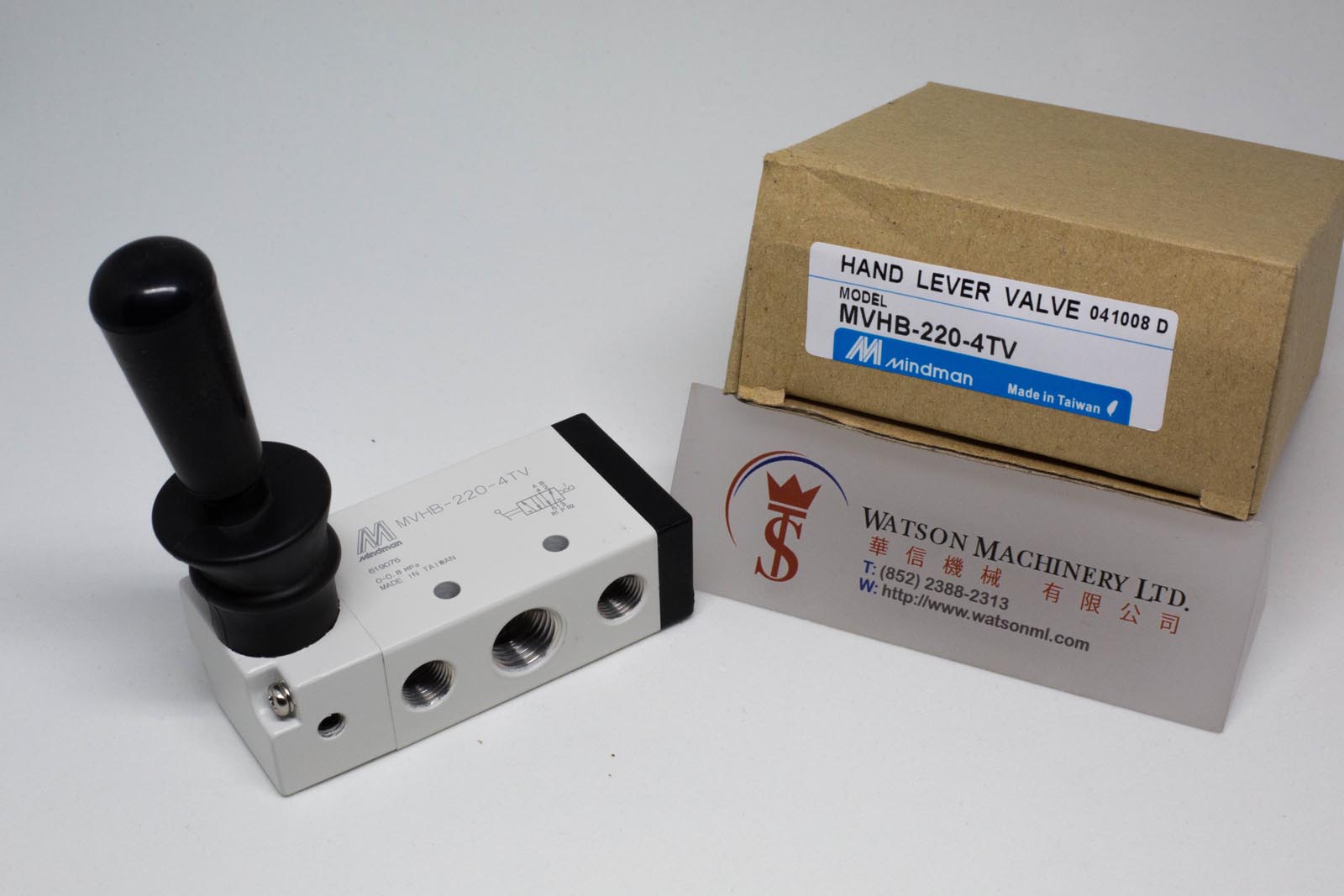

HAND LEVER Valve
MVHB-220-4TV
Technical Specifications
| Model | MVHB-220-4TV |
| No.of port: | 5 |
| Bore no.: | 8A |
| Port size | Rc 1/4 |
| Medium | Air |
| No. of position | 2 |
| Operating pressure range | 0~0.8 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 18 mm² |
