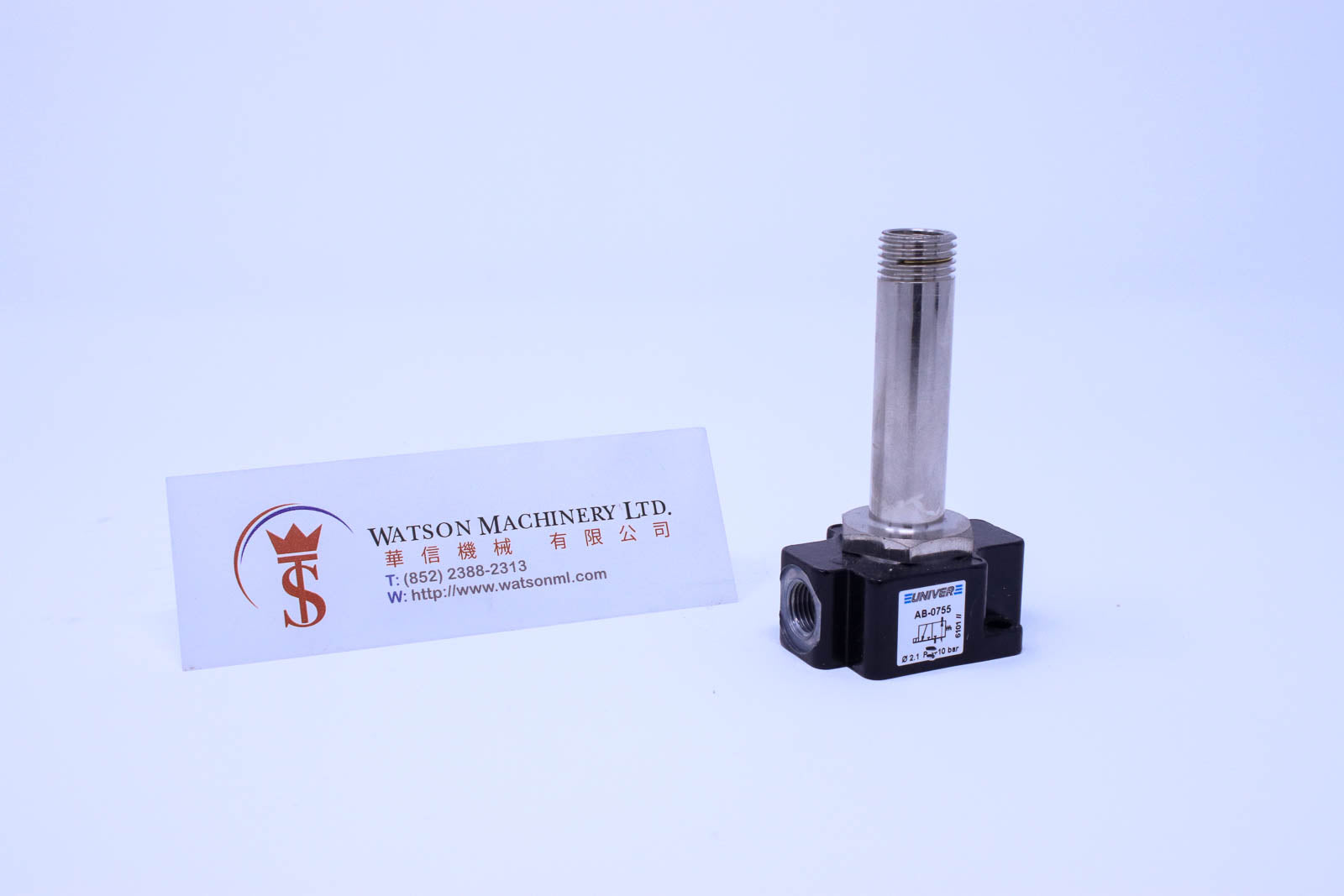

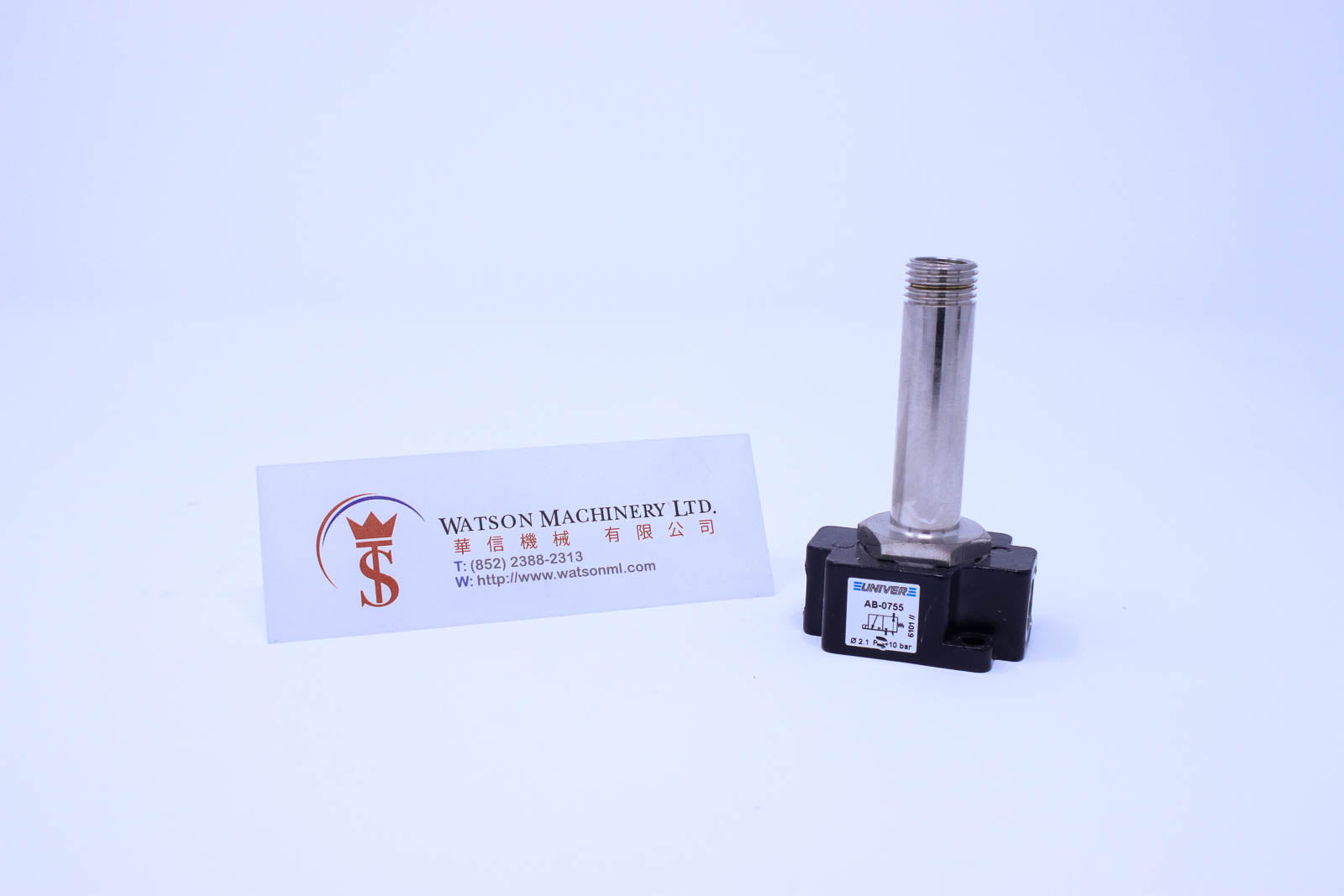

Univer AB-0755 U2 (Normally Open) Minature Electropilot
Univer AB-0755 U2 (Normally Open) Minature Electropilot

Univer AB-0755 U2 (Normally Open) Minature Electropilot

Regular price
US$79.40
Sale price
US$79.40

UNIVER
U2 MINIATURE ELECTROPILOTS

3/2 U2 Electropilot G1/8
AB-0755 , NO

Technical Specifications

 Ambient temperature -10÷50 ℃
Fluid 10 μm filtered air, with or without lubrication, neutral gases
Commutation system Direct intervention poppet with cushioned seals
Pressure 0÷10 bar (2/2, 3/2 NC),  3÷10 bar (3/2 NO)
Connections on sub-base / threaded on the body
Nominal bore (mm)
  • Sub-base: 2,1÷2,4
  • G1/8: 2,1÷2,4
  • G1/4: 1,6÷6
  • CNOMO: 2,1÷2,4
Nominal flow rate (Nl/min)
  • Sub-base: 92÷150
  • G1/8: 100÷155
  • G1/4: 95÷650
  • CNOMO: 92÷110
Power consumption
  • 11W (DC)
  • 10VA (AC)
Connector AM-5111
Sleeve U2
Coil DB
Voltage 12V DC , 24V DC ,  24V AC ,  110V AC , 230V AC
Protection degree IP65
