Accessory Valves
Signal processing valve

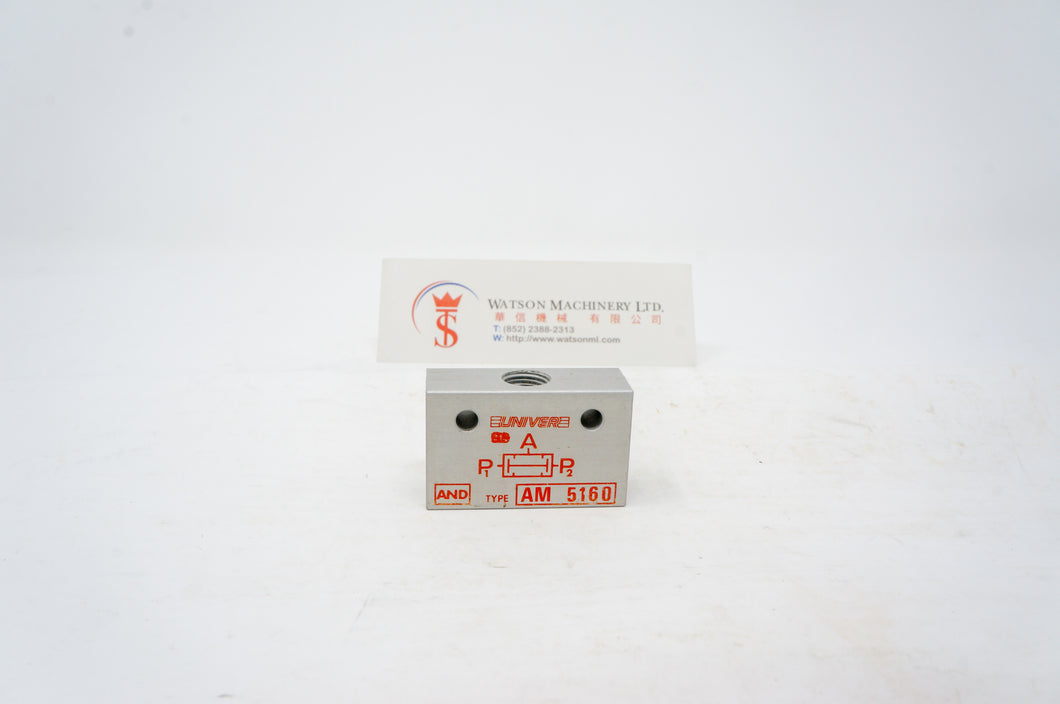

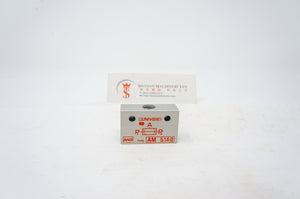

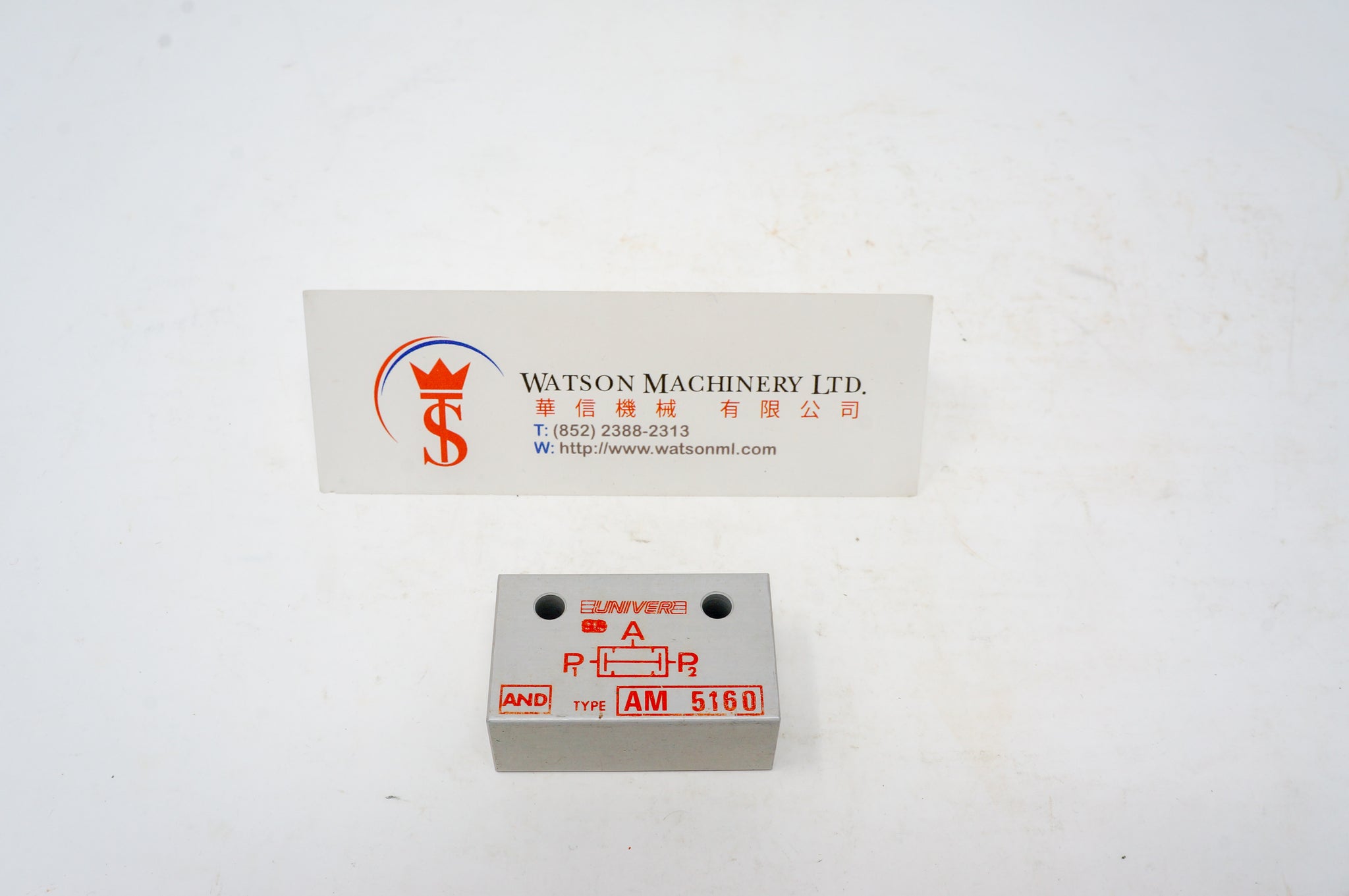

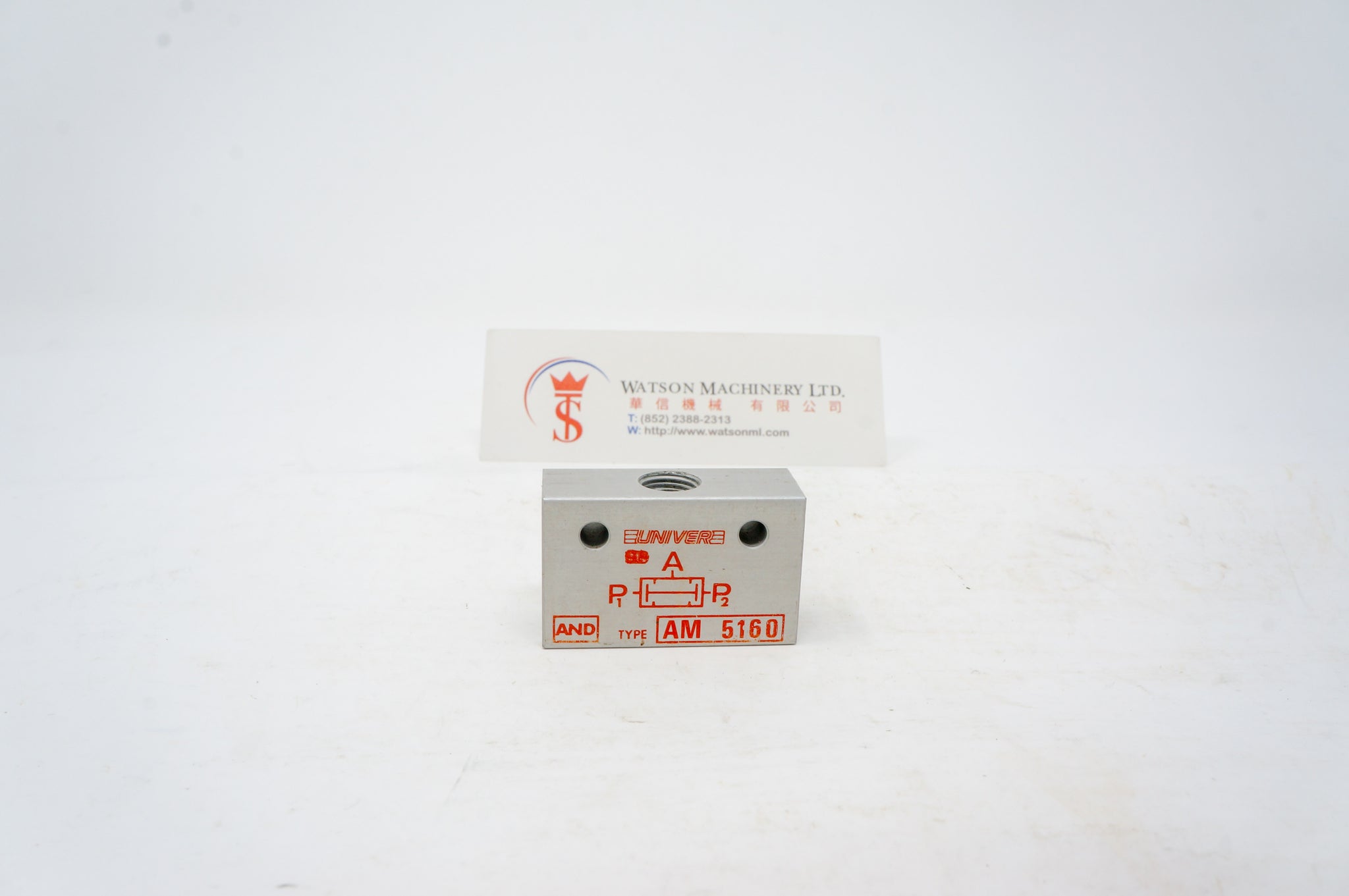

AM-5160, Two-pressure valve "AND". Threaded body G1/8
Technical Specifications
| Ambient temperature | -10 ÷ +75℃ |
| Fluid | Compressed air or neutral gases. |
| Fluid temperature | 50℃ |
| Pressure Max | 1,5 ÷ 8 bar |
| Flow capacity at 6 bar |
300 Nl/min (Version G1/8 threaded connections) with nominal diameter 3,5 mm. 110 Nl/min (Version with quick coupling 4X2) with nominal diameter 2 mm. |
| Seals | In oil-proof rubber |
