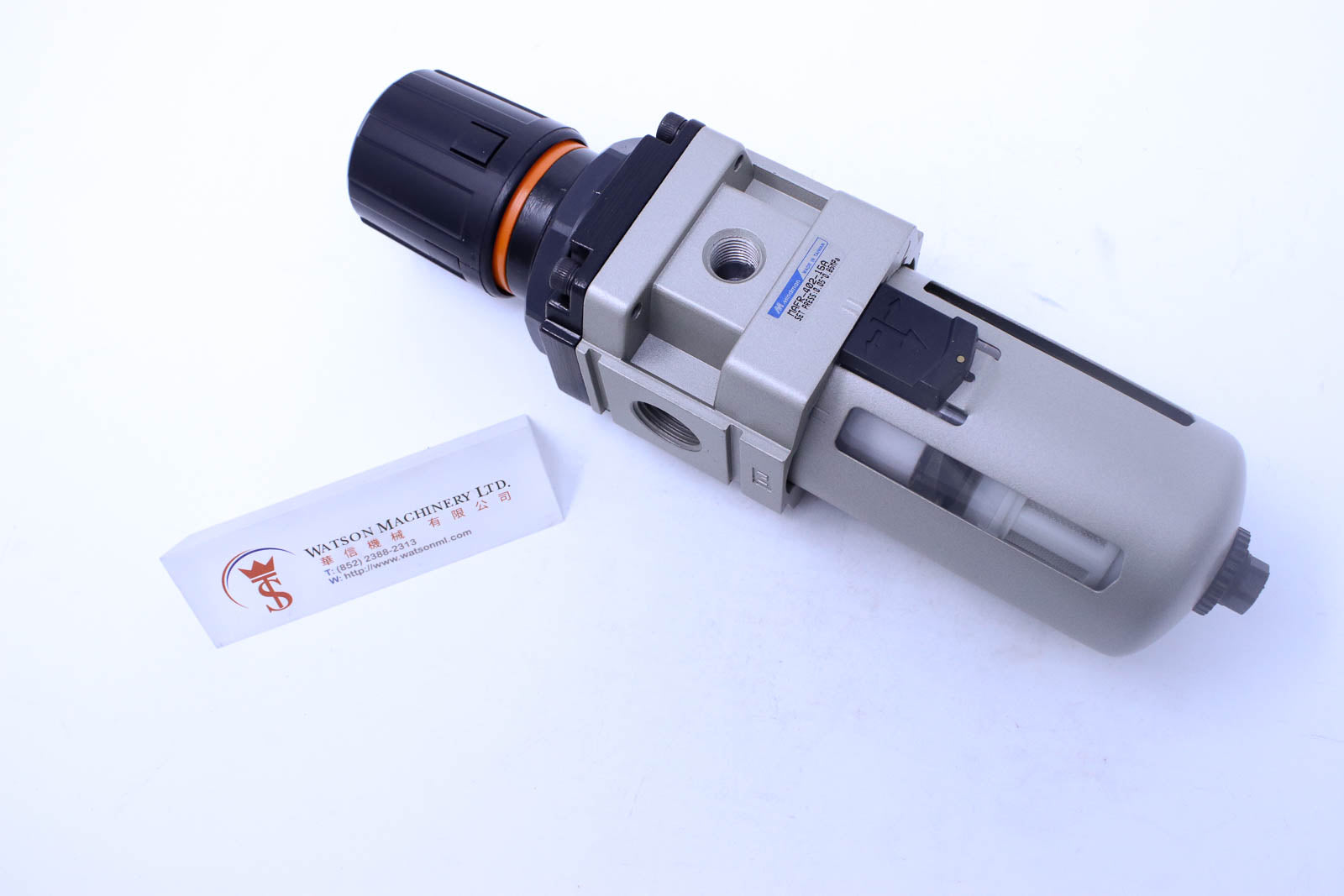

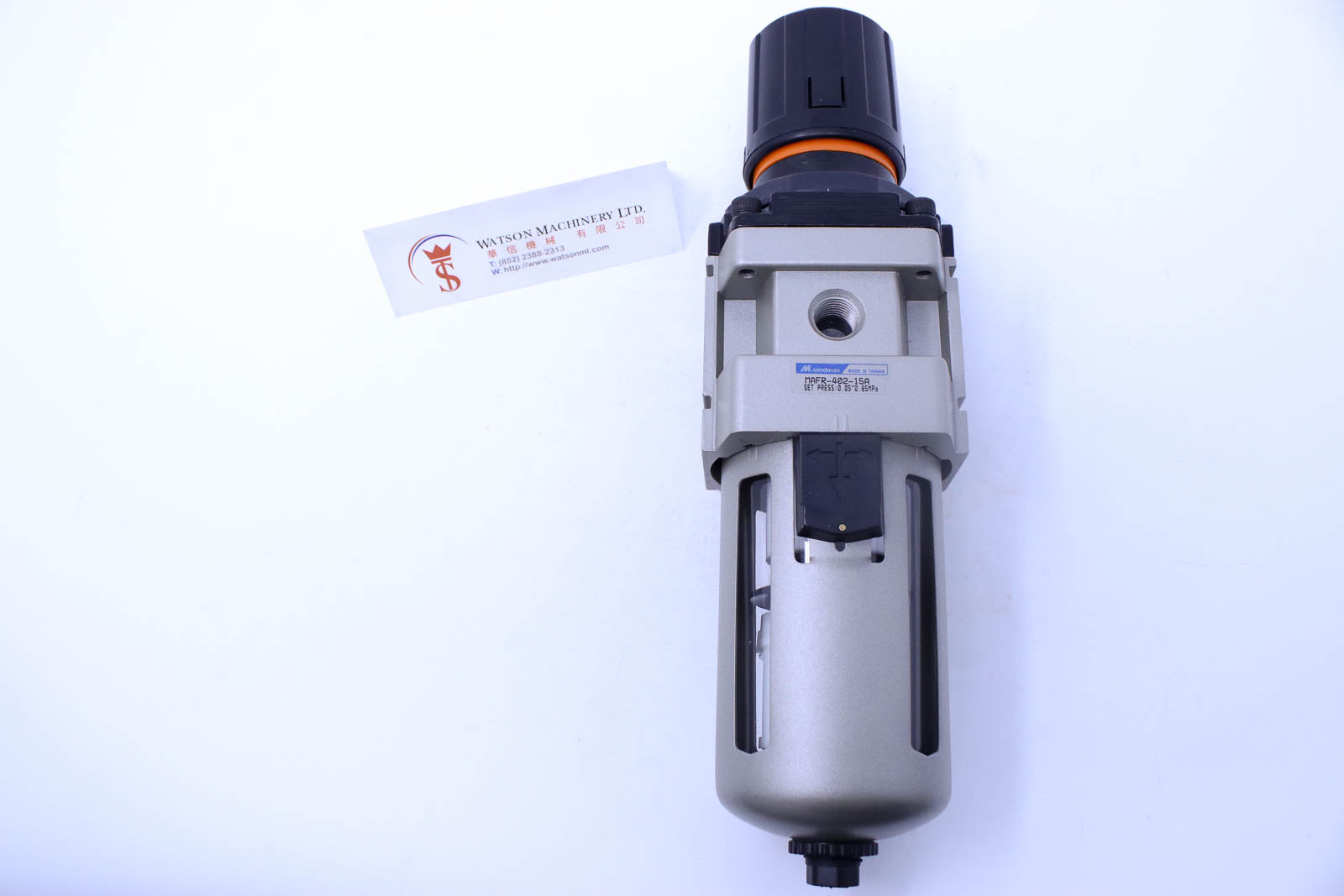

AIR UNIT (F.R UNIT)
MAFR402 series
MAFR402-15A-D, 1/2, Auto drain
Technical Specifications
| Model | MAFR402 |
| Bore no. | 10A /15A / 20A |
| Port size | 3/8 / 1/2 / 3/4 |
| Medium | Air |
| Operating perssure range (*) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 40μm Option: 5μm / 20μm |
| Attachment | Pressure gauge, bracket |
