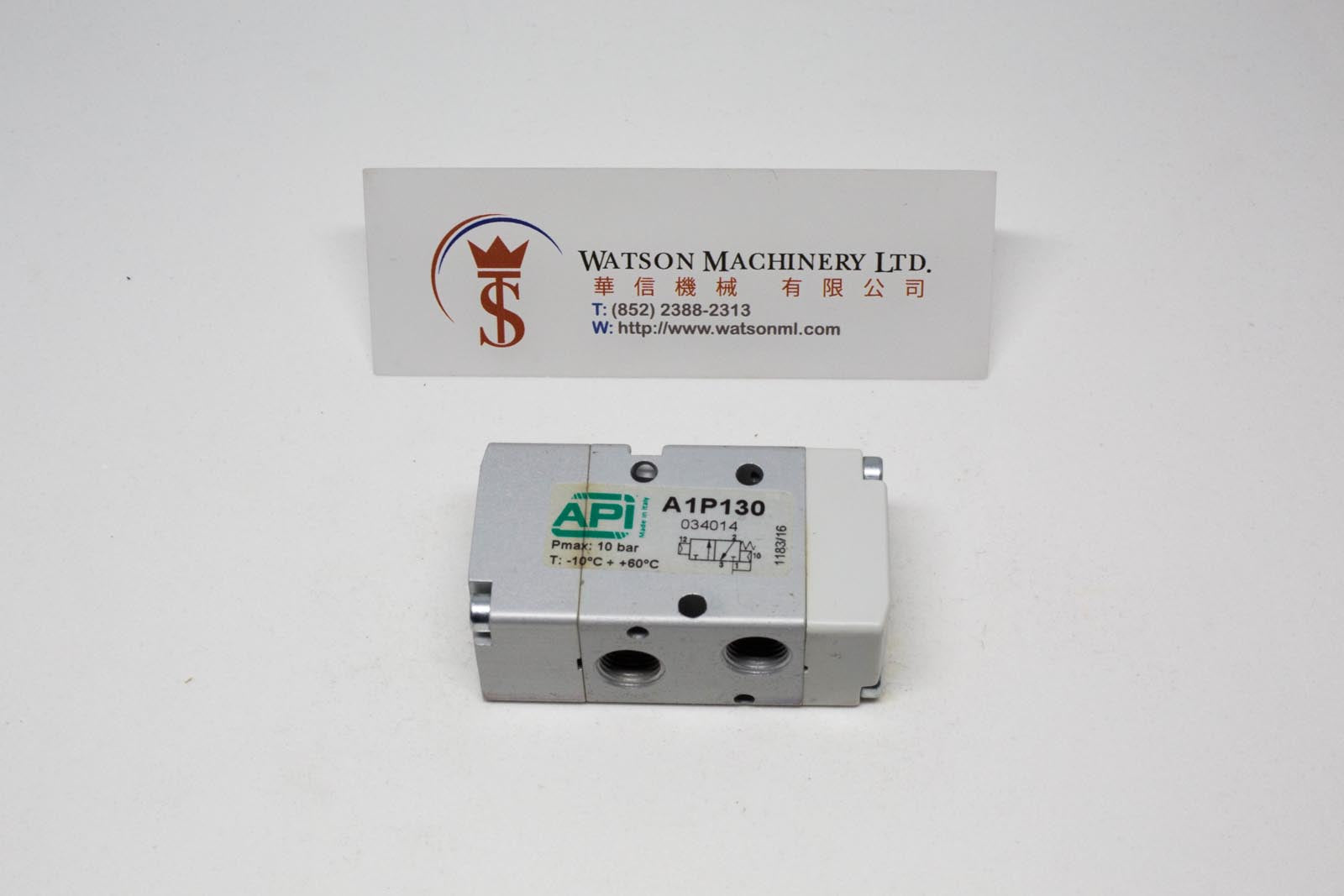

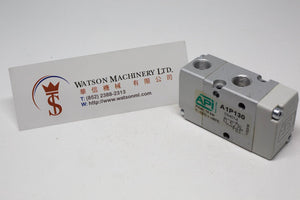

MPN 034014, 1/8" BSP, 3/2 NC pneumatic valve
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | Spring return: 1,5 ÷ 10 bar Bistable: 1 ÷ 10 bar |
| Temperature range | -10℃ ÷ +60℃ |
| Orifice | 6.5 mm |
| Flow | 650 Nl/min. at 6bar with ΔP 1bar |
| Mounting | In any position |
| Materials |
Body: Anodised aluminium |
