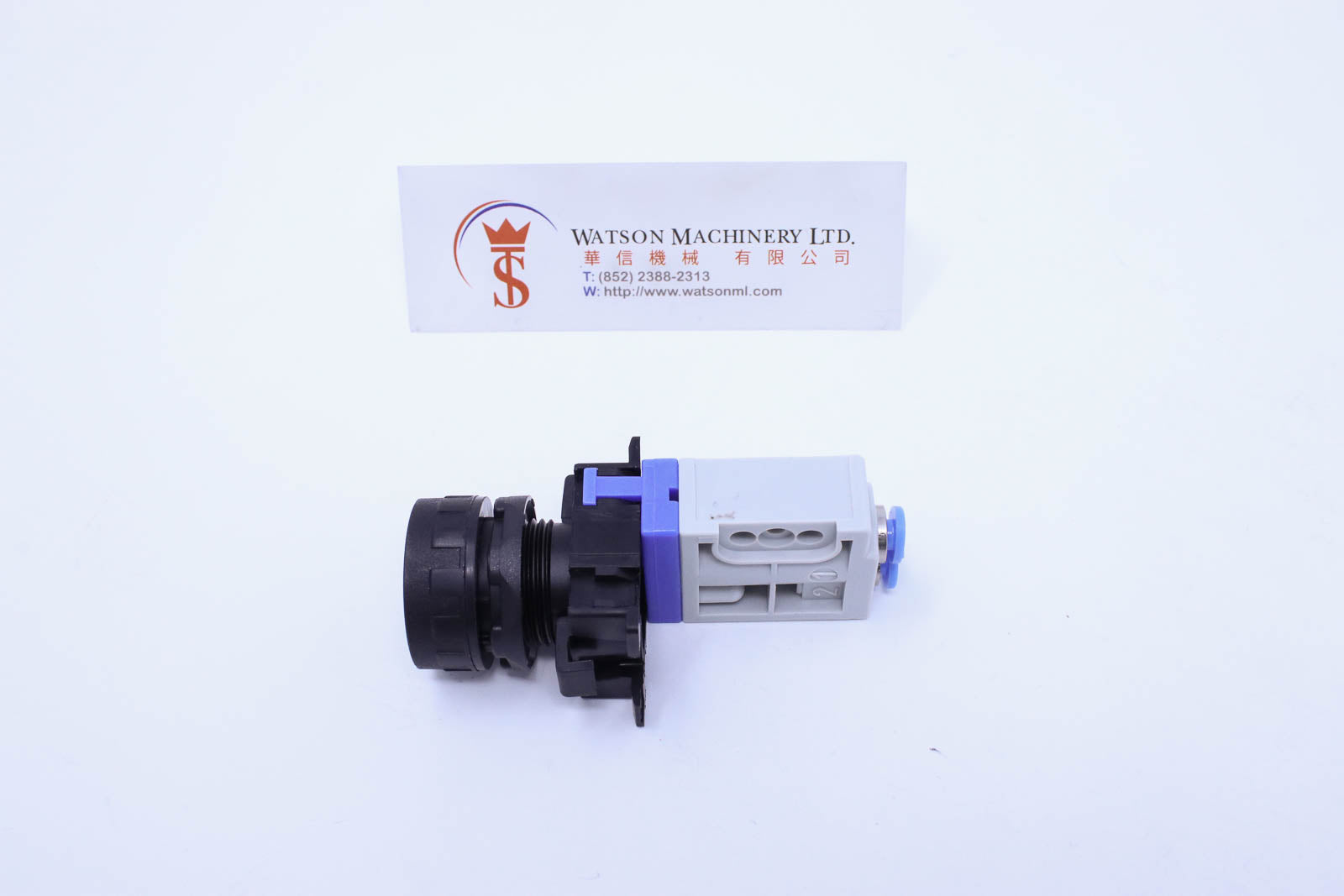

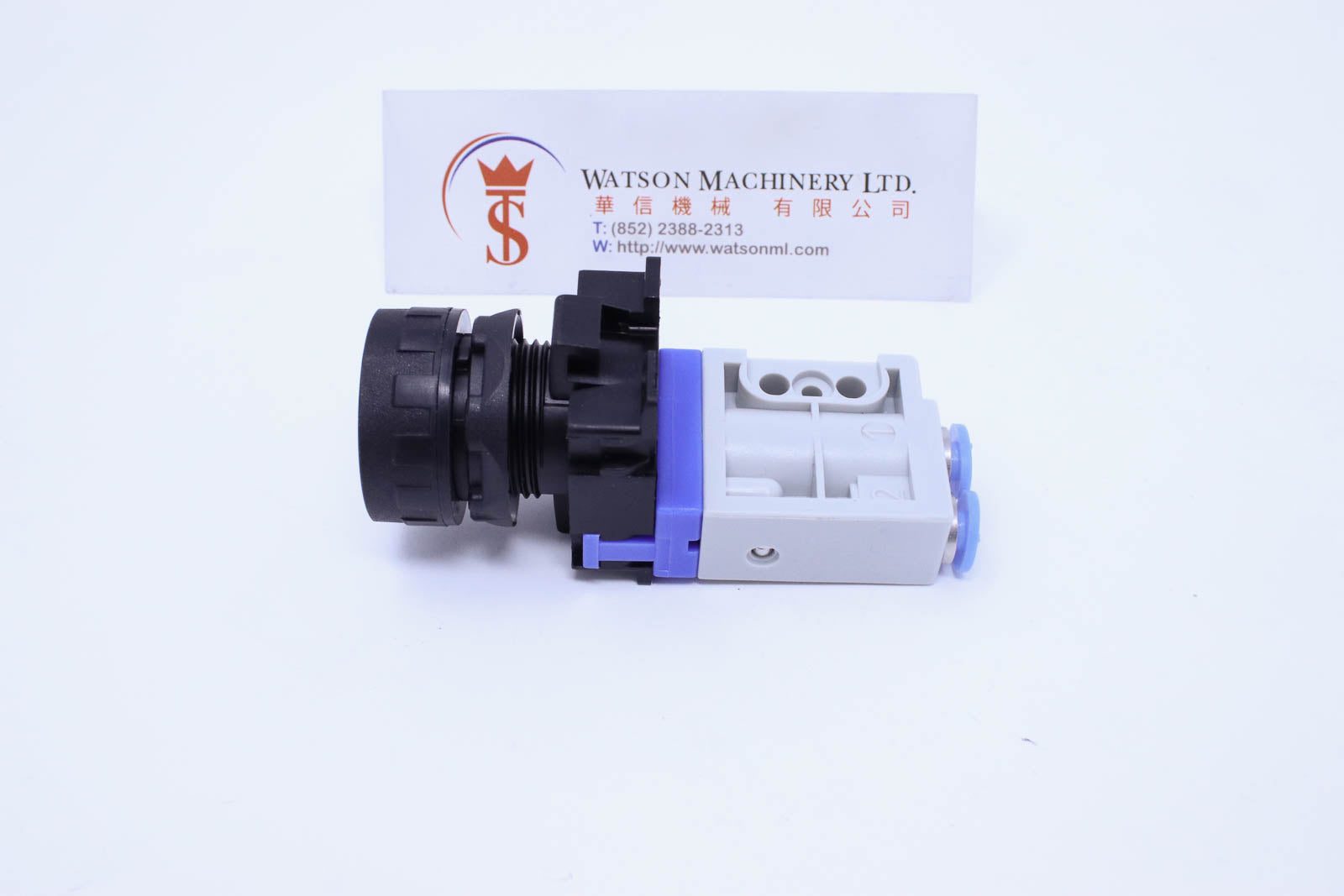

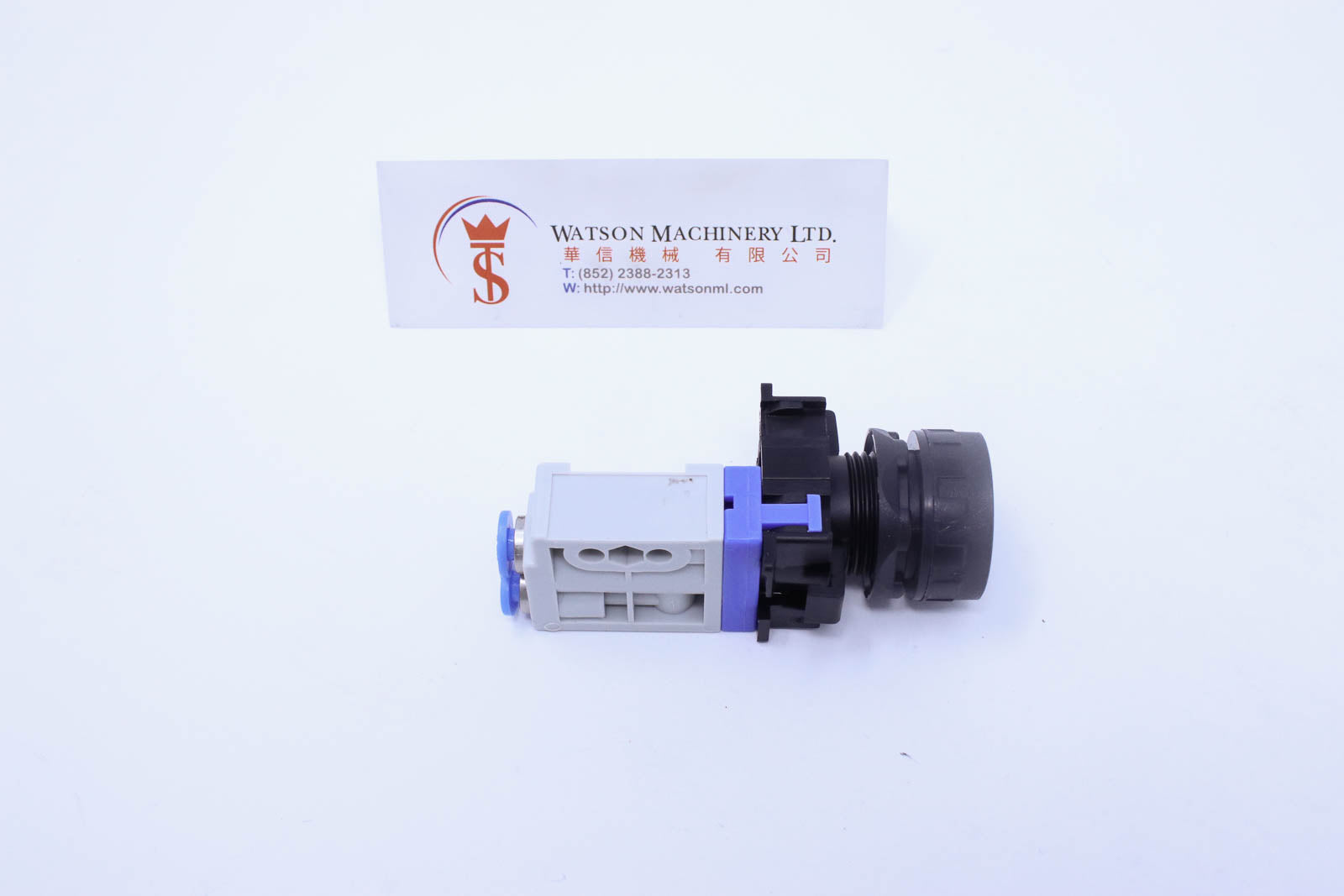

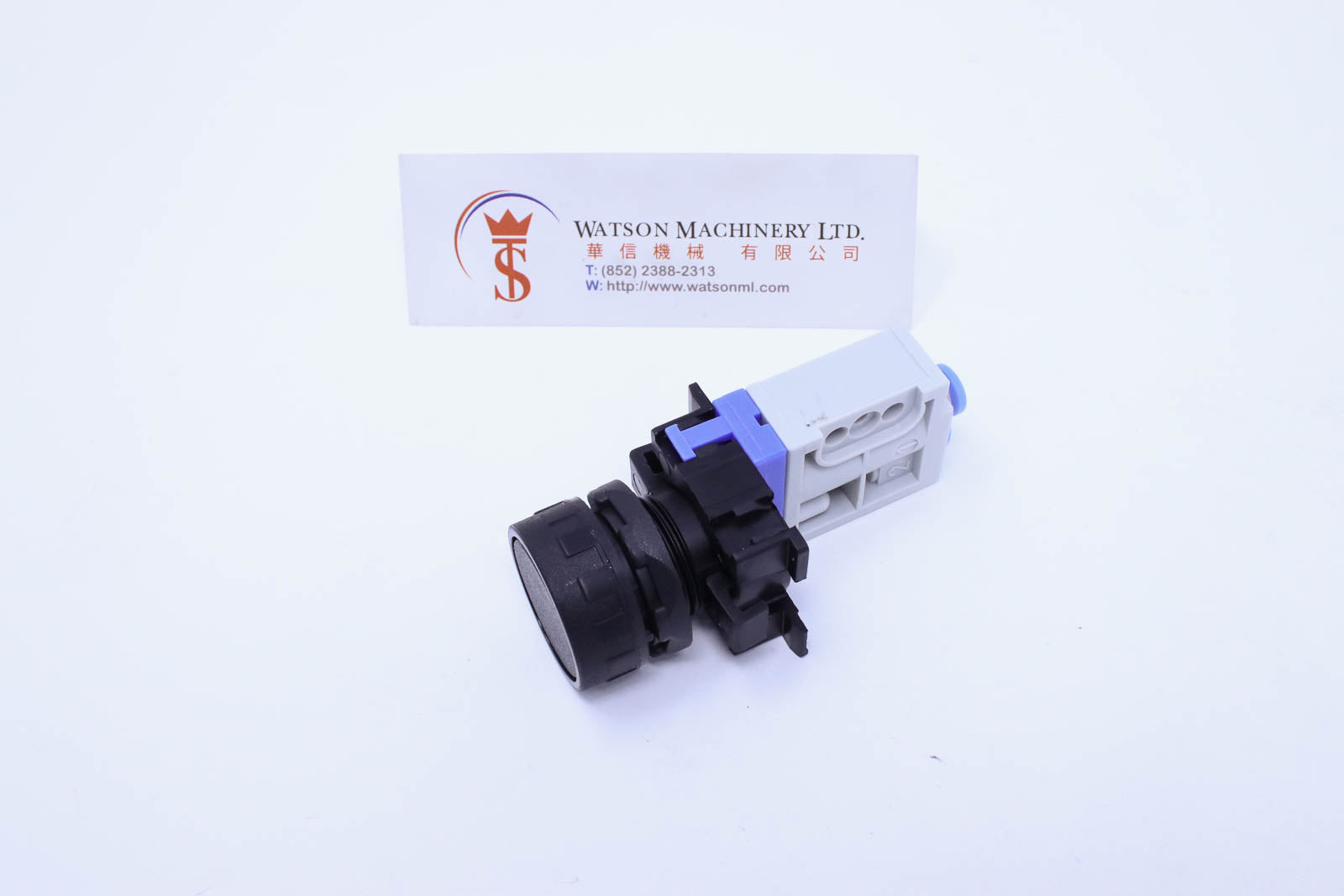

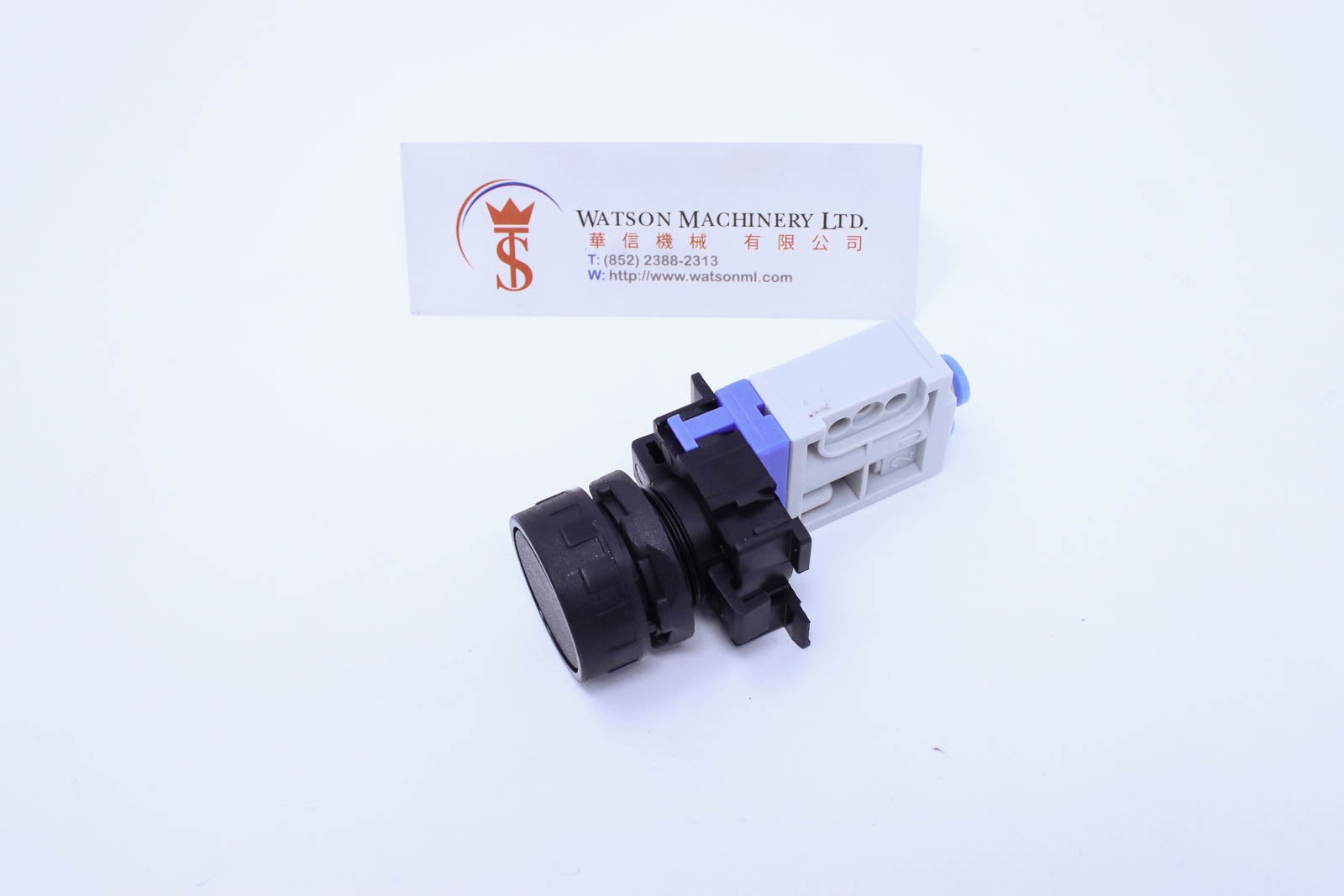

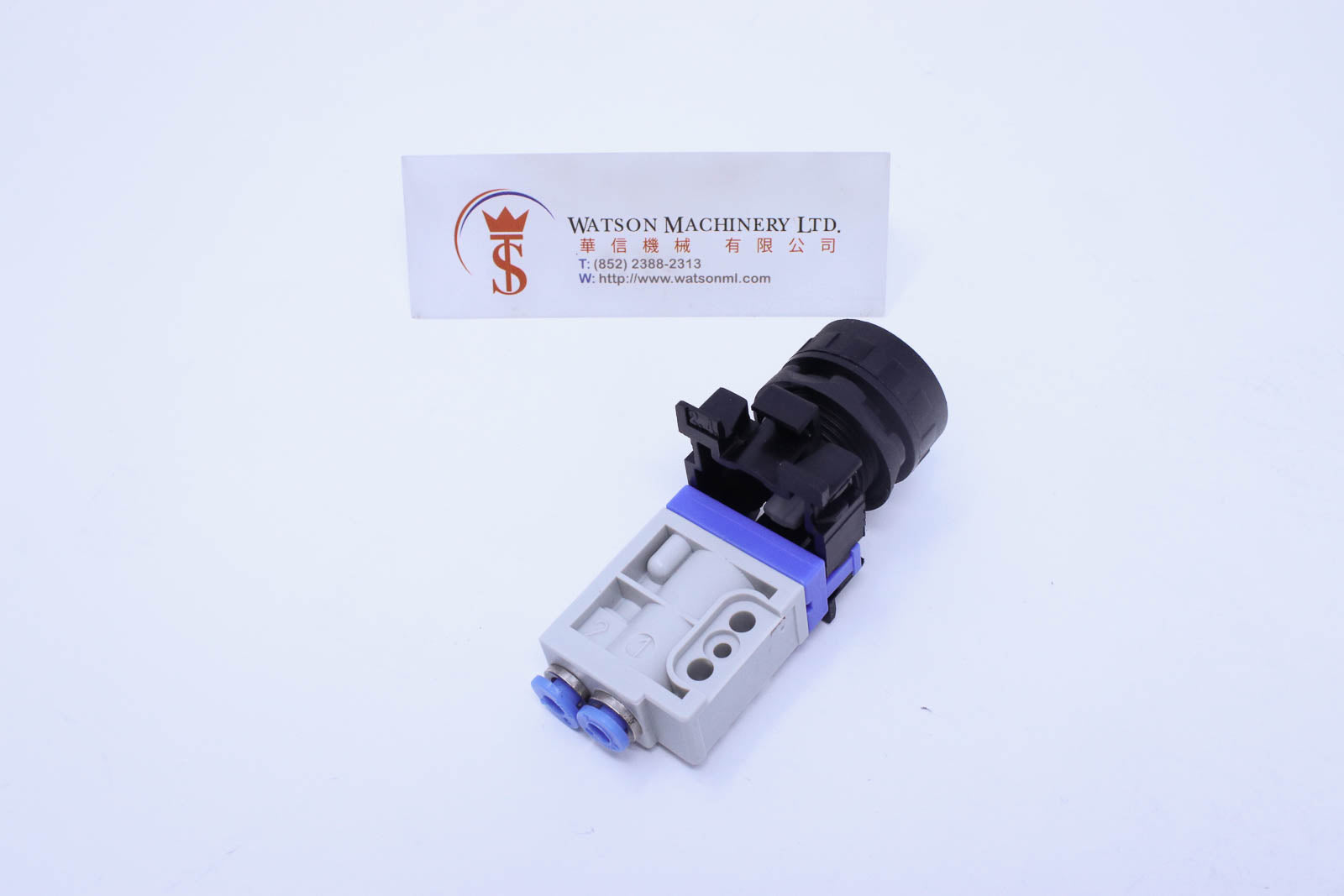

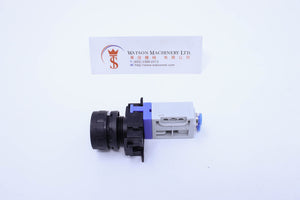

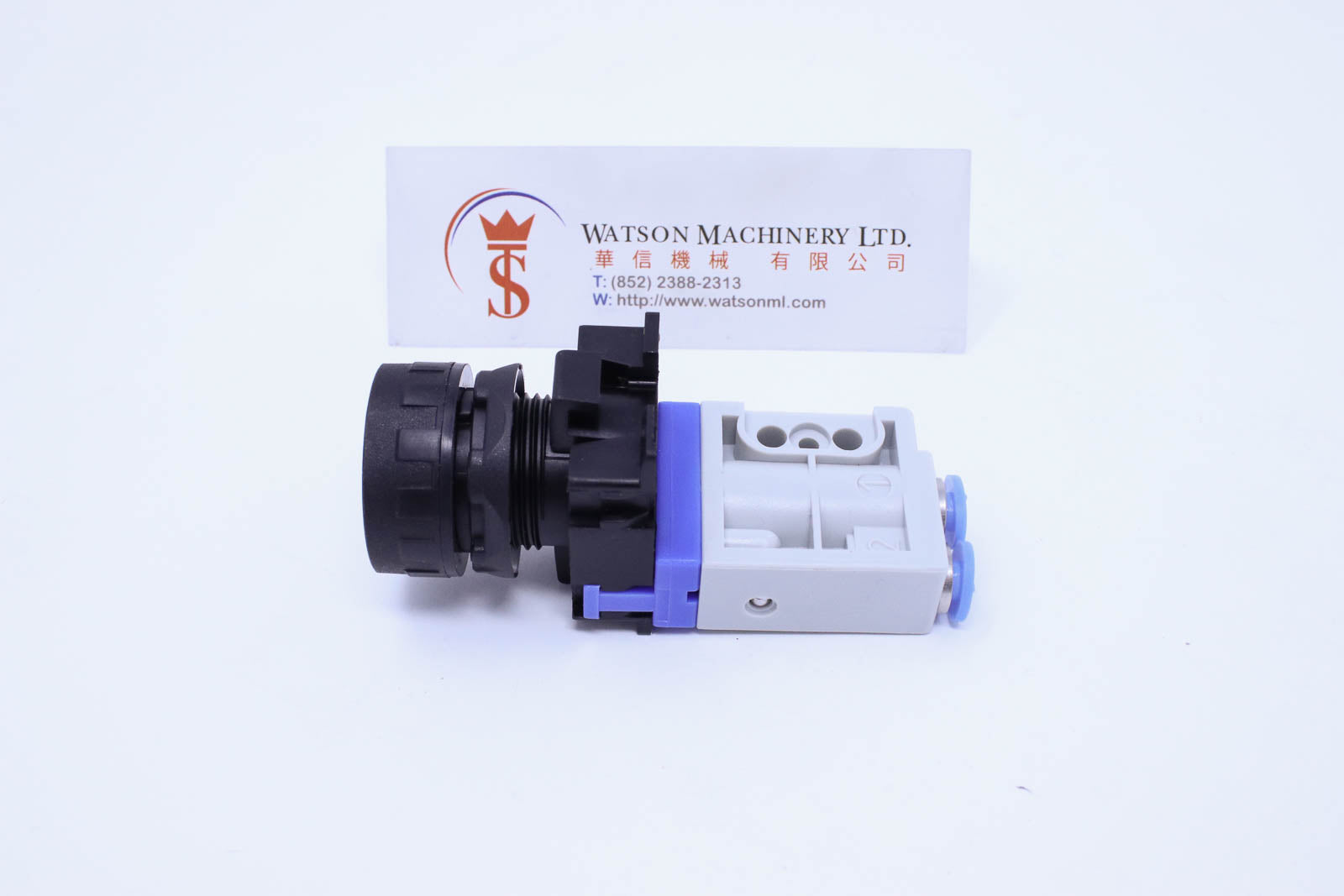

MPN 030252, Normally closed, Ø4 Microvalve
Technical Specifications
| Fluid | Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
| Pressure range | 0 ÷ 8 bar |
| Temperature range | -20℃ ÷ +80℃ |
| Operating force | 5 N |
| Flow | 80 Nl/min. |
| Connections | With integral 4mm push-in fittings |
| Fixing | Through 2 holes (Ø4mm) on the body Through 1 hole (Ø22mm) on the panel (with operating device mounted) |
| Mounting | In any position |
| Materials |
Body: Acetal resin |
