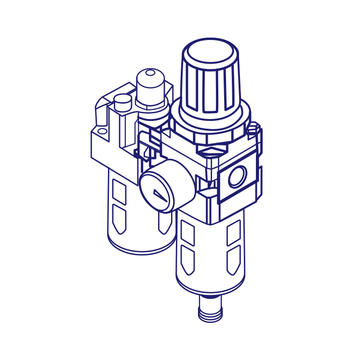

Knocks FDO.54 G MAN (FDO.54 G HA3) Service Unit Assemblies WITH G63 (16bar) GAUGE F/R+L,3/4 (Self Drain)

Knocks FDO.54 G MAN (FDO.54 G HA3) Service Unit Assemblies WITH G63 (16bar) GAUGE F/R+L,3/4 (Self Drain)

Regular price
US$759.60
Sale price
US$759.60

KNOCKS
Made in Germany
G 3/4 Manual drain, with G63 16bar gauge

Technical Specifications

Port size G 3/4
Description Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter, propor.oiler
Mounting Vertically, drain plug at bottom
Supply pressure Pe max.16 bar
Pe max.12 bar with auto drain
Pe min. 1,5 bar with auto drain
Reduced pressure Pa 0,5-10 bar standard.0,1-3 bar, 0,2-6 bar, 0,5-16 bar
Filter element 40 μm standard , 8 μm (absolutely)
Media and ambient temperature Max. 60℃
(oth. temperature ranges available upon request)
Bowl volume Max. 300 cm³ condensation volume, 550 cm³ oil bowl
Drain model Manual drain standard (MAN)
Fixing Bracket
