FLOW CONTROL VALVE
MSC300 series
MSC-300-10A, 3/8
Technical Specifications
Model | MSC300 |
Bore no. | 10A / 15A |
Port size | Rc3/8 / Rc1/2 |
Medium | Air |
Operating pressure range | 0~1 MPa |
Proof pressure | 1.5 MPa |
Ambient temperature | -5 ~ + 60℃ (No freezing) |
Flow (l/min) Free flow | 400 / 430 |
Flow (l/min) Controlled flow | 300 / 400 |

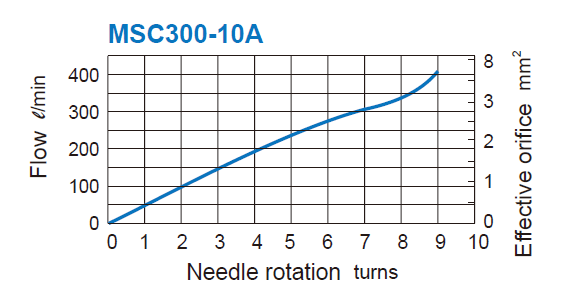

Number of needle rotations | 9 |
