MINDMAN
MVHA-2*/3* series
HAND Valve

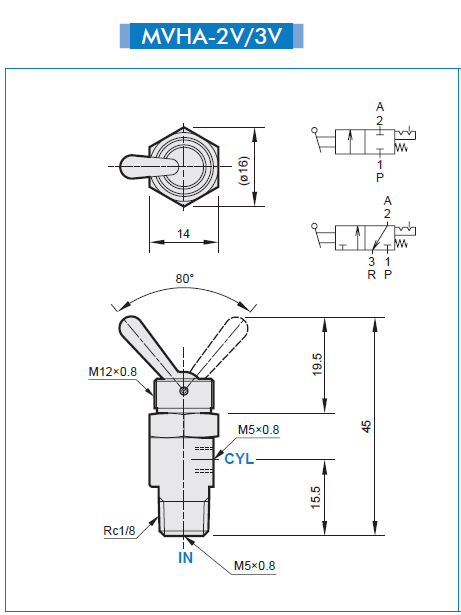

MVHA-2V
Technical Specifications
| Model | MVHA-2*, 3* |
| No.of port: | 2 or 3 |
| Port size | M5x0.8 |
| Medium | Air |
| No. of position | 2 |
| Operating pressure range | 0~0.9 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 1.8 mm² |
