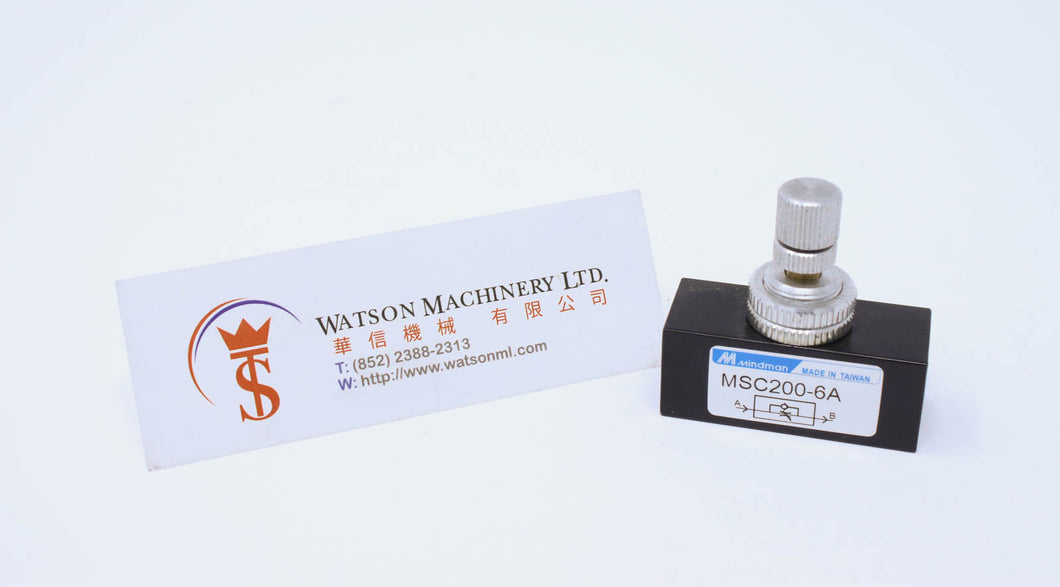

Mindman MSC-200-6A FC Flow Control Valve
Mindman MSC-200-6A FC Flow Control Valve
Mindman MSC-200-6A FC Flow Control Valve
Mindman MSC-200-6A FC Flow Control Valve
Mindman MSC-200-6A FC Flow Control Valve
Mindman MSC-200-6A FC Flow Control Valve

Mindman MSC-200-6A FC Flow Control Valve

Regular price
US$5.90
Sale price
US$5.90

FLOW CONTROL VALVE
MSC200 series
MSC-200-6A,1/8

Technical Specifications

Model MSC200
Bore no. 6A / 8A
Port size Rc1/8  /  Rc1/4
Medium Air
Operating pressure range 0~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5 ~ + 60℃ (No freezing)
Flow (l/min) Free flow 200
Flow (l/min) Controlled flow 150 / 100
Number of needle rotations 8



ADD TO QUOTE REMOVE FROM QUOTE
