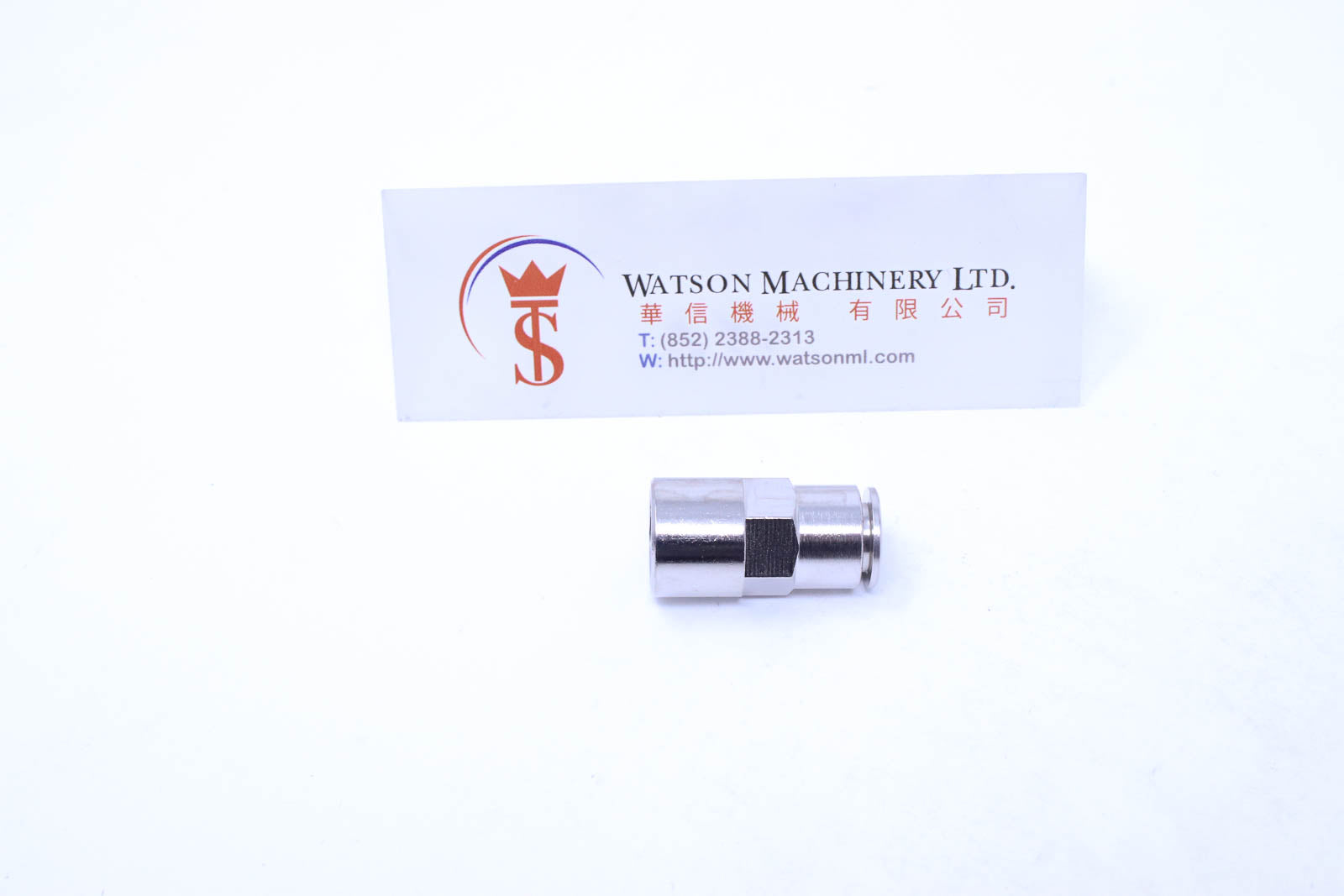

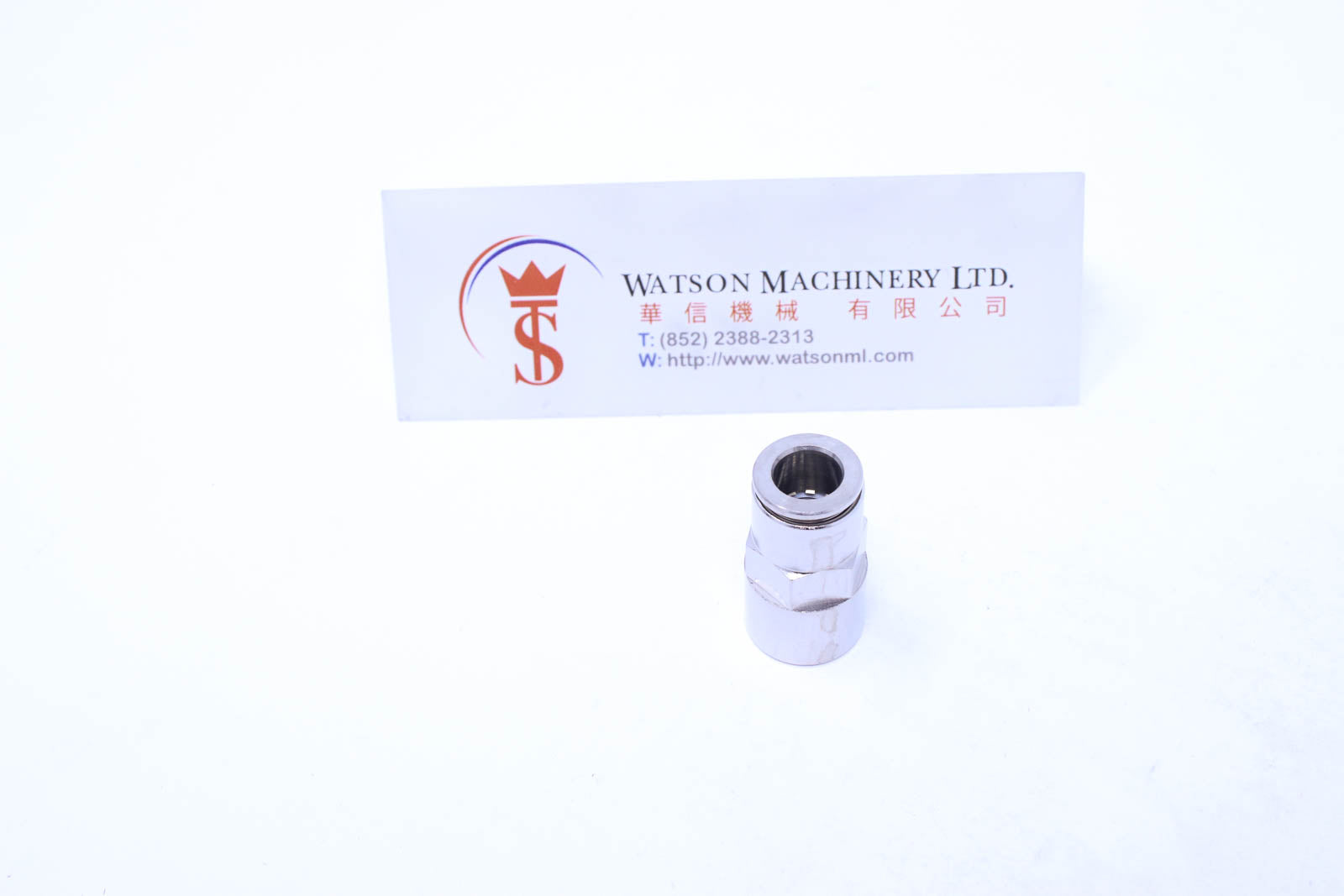

API R130814 1/4" Female to 8mm Push-in Fitting (Nickel Plated Brass) (Made in Italy)

Regular price
US$8.50
Sale price
US$8.50

API Push-in fittings series R

In nickel plated brass

MPN 020067 , TubeØ8 x 1/4" Female BSP Stud

Technical Specifications

Fluid Compressed air
Pressure range 0,5 ÷ 12 bar (Vacuum resistance: 750mm.Hg)
Temperature range -20℃ ÷ +70℃
Parallel threads UNI-ISO 228/1 (BSP)
Taper threads UNI-ISO 7/1 (BSPT)
Metric threads ISO R/262
Connection tubes Calibrated nylon, Polyurethane and Rilsan
Tube tolerances from Ø3 mm to 10mm: ±0,05mm
   Ø12mm and 14mm : ±0,1mm
Materials

Body and release collar: Nickel plated brass
Collet: Stainless steel
Seals: Nitrile rubber (NBR)
