TOGNELLA

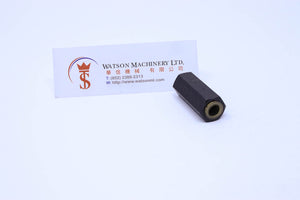

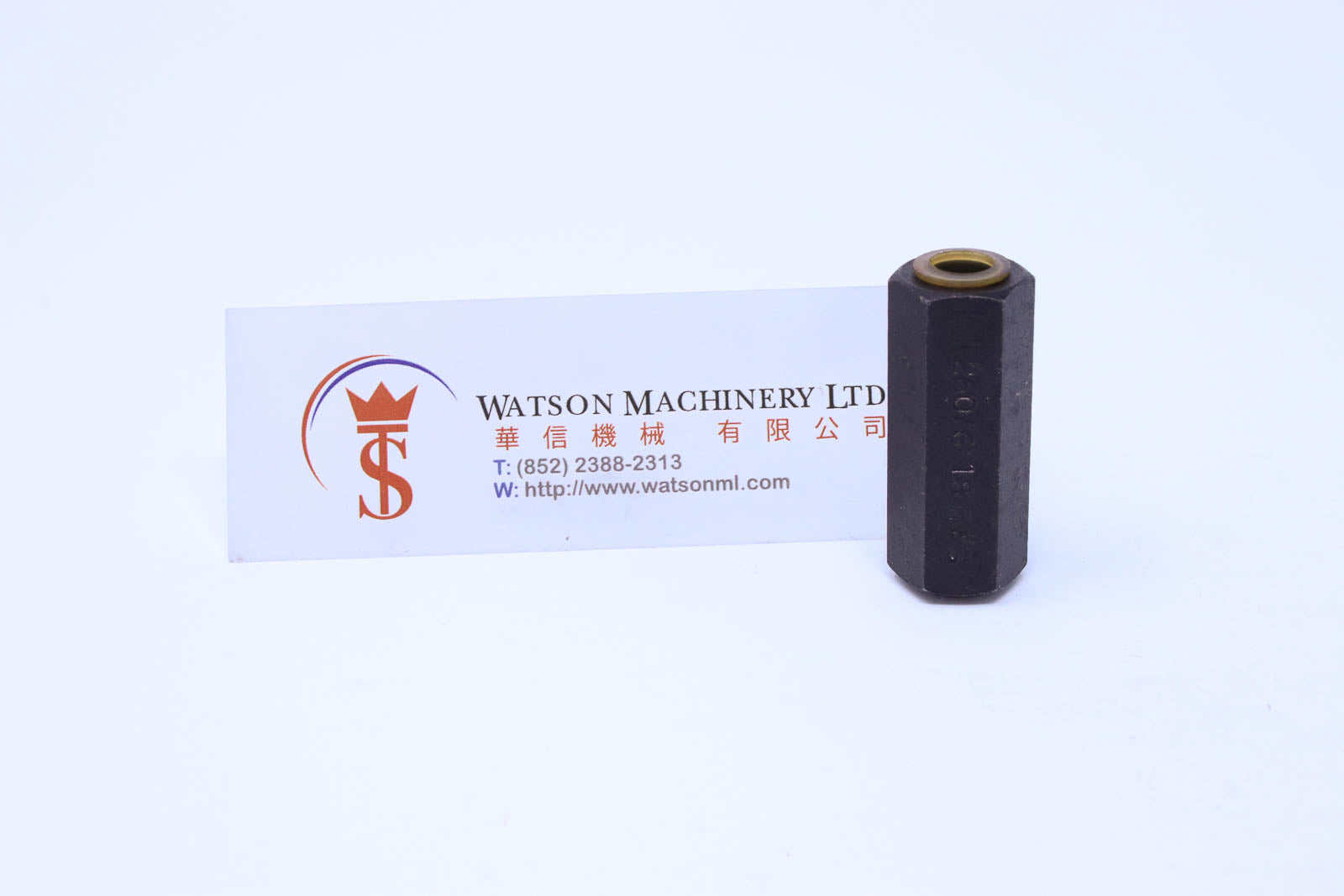

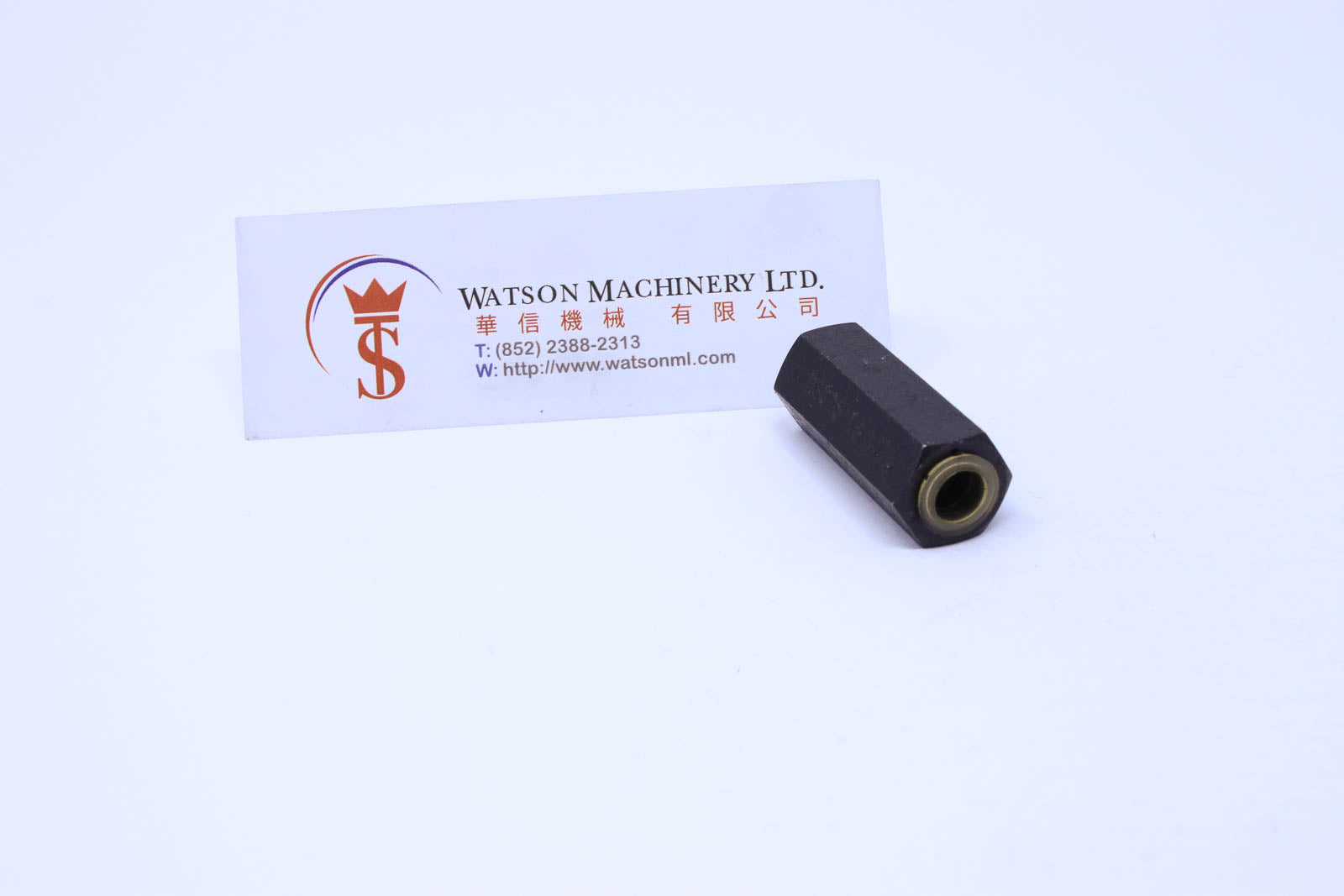

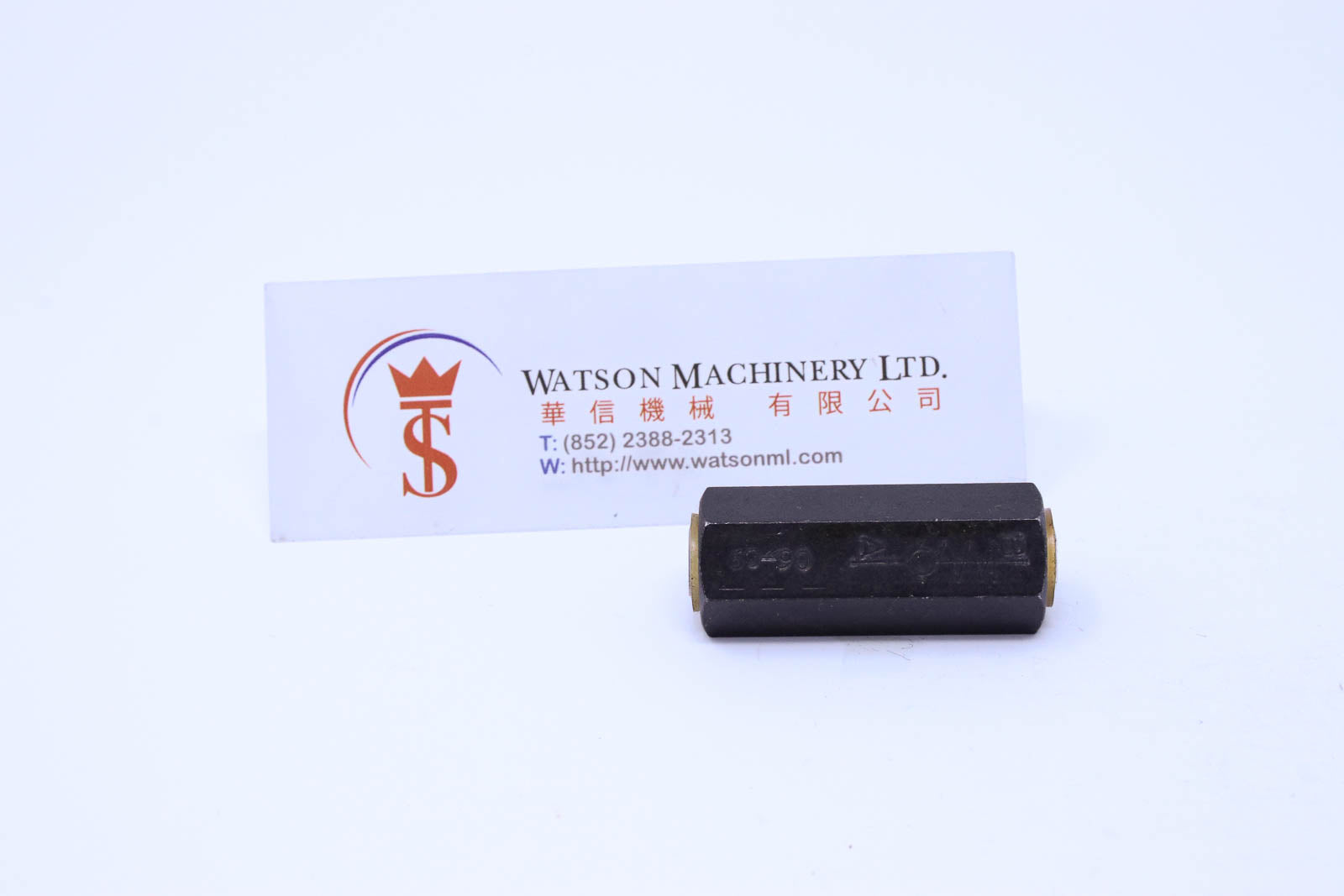

IN LINE SINGLE-ACTING VALVES (BALL)
They are inserted in branches of the circuit where the free flow in one direction is allowed and the return flow in the opposite direction is not possible.
The single-acting valves (in line) are of ball type with alignment guide made of composite high resistance material which allows a total passage and a great breaking strength and wear resistance. All this has been confirmed by numerous tests.
They are available with two different calibrations of the opening pressure (0,35 bar standard)
On request (Versions AISI 316 code FT2260/6 with seal )
FT260/6-18, G1/8"
Made in Italy
Technical Specifications
MATERIALS
IN LINE SINGLE-ACTING VALVES (BALL)
They are inserted in branches of the circuit where the free flow in one direction is allowed and the return flow in the opposite direction is not possible.
The single-acting valves (in line) are of ball type with alignment guide made of composite high resistance material which allows a total passage and a great breaking strength and wear resistance. All this has been confirmed by numerous tests.
They are available with two different calibrations of the opening pressure (0,35 bar standard)
On request (Versions AISI 316 code FT2260/6 with seal )
FT260/6-18, G1/8"
Made in Italy
Technical Specifications
WORKING PRESSURE | 400 bar |
MIN. BURSTING PRESSURE | 1600 bar |
WORKING TEMPREATURE | -20℃ to 100℃ |
FILTRATION GRADE | 25 μm |
MATERIALS
BODY | 9S MN PB 23 - UNI 5105 |
SPRING | AISI 302 |
BALL | UNI 100 C6 |
BALL GUIDE | NYLON 66 + FIBRA CARBONIO |
