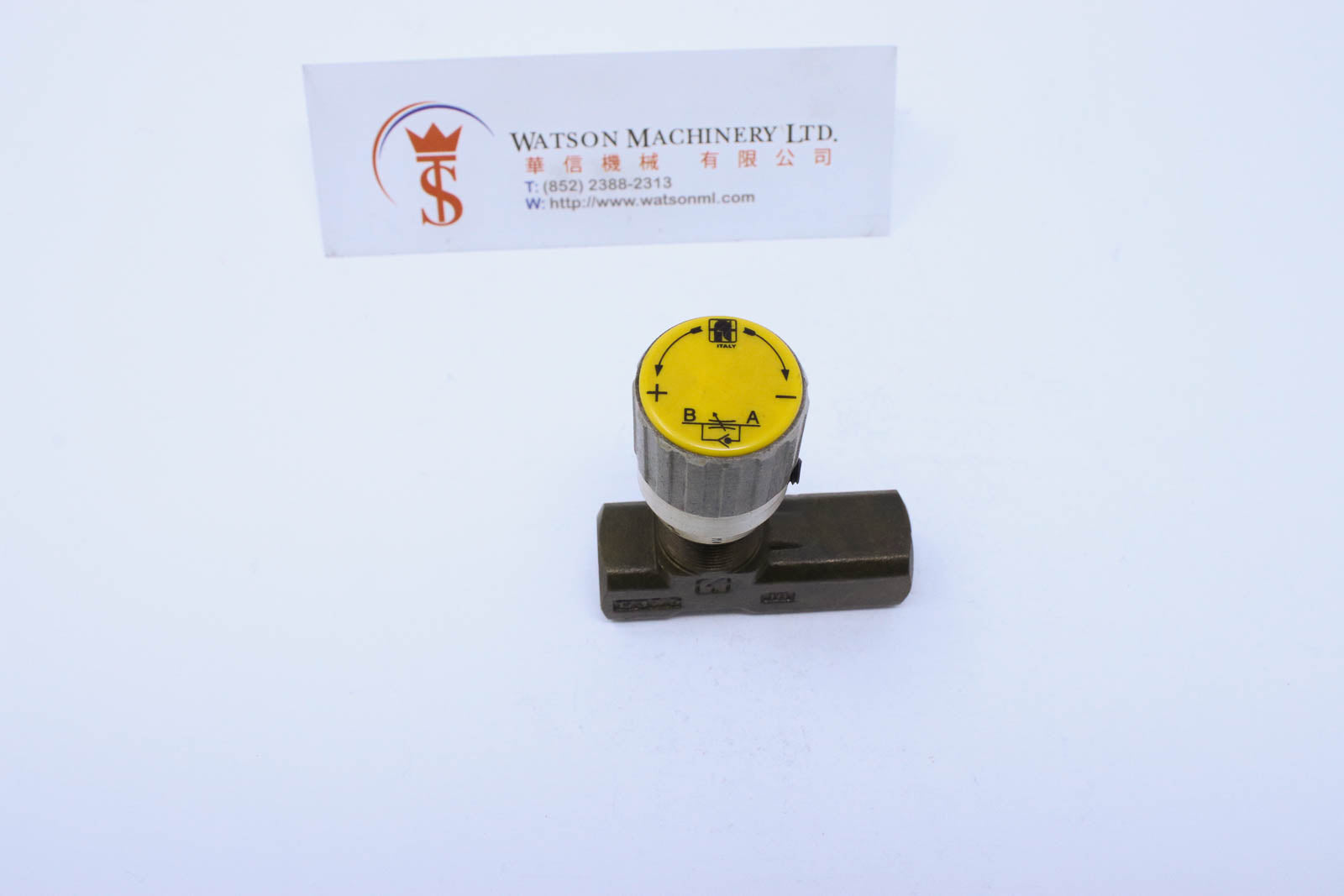

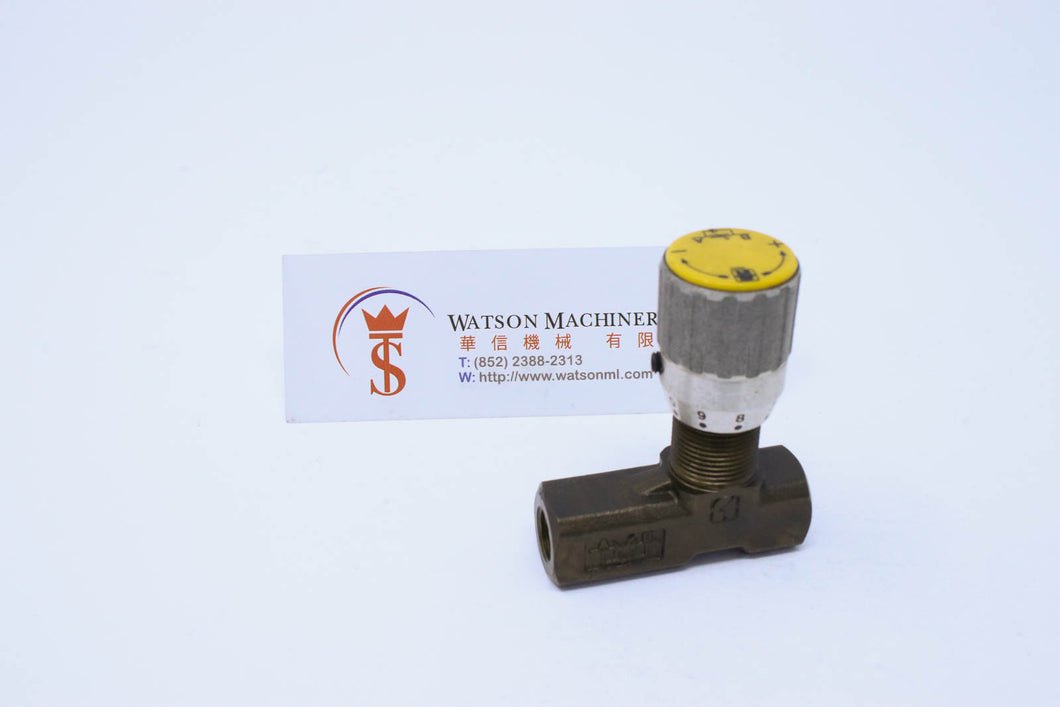

Tognella 1237/5-01-18 210 bar 1 way Needle Valve Flow Control
Tognella 1237/5-01-18 210 bar 1 way Needle Valve Flow Control

Tognella 1237/5-01-18 210 bar 1 way Needle Valve Flow Control

Regular price
US$77.30
Sale price
US$77.30

TOGNELLA
SINGLE-ACTING FINE CONTROL VALVES IN LINE
Made in Italy

Technical Specifications
TYPE G1/8
FLOW SQ MM² 3,14
MAX WORKING PRESSURE BAR 210 bar
WORKING TEMPERATURE ℃ -20℃ to 100℃
FILTRATION GRADE μM 25 μm

MATERIALS
 BODY OT 58 - UNI 5705-PASSIVATED
NEEDLE X 10 CR NI S 1809- UNI 6900
OR NITRILE
ANTIEXTRUSION RING PTFE
KNOB GD AL SI 12 - UNI 5706
SPRING AISI 302
BALL UNI 100 C 6
BALL GUIDE NYLON 66 + CARBON FIBER
