UNIVER

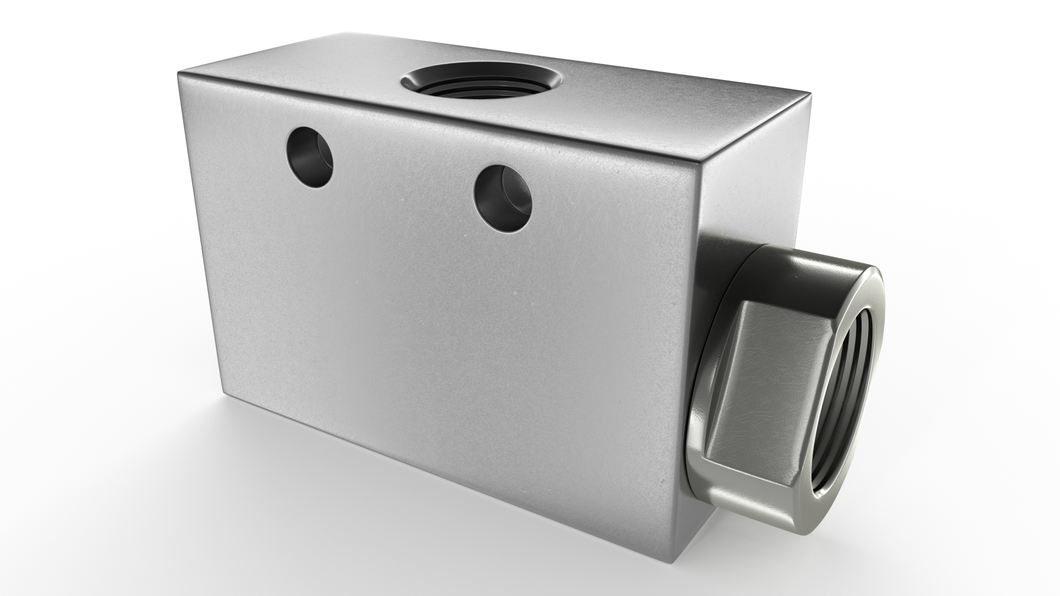

QUICK EXHAUST VALVE
HC060014
Technical Specifications
| Temperature | 0 to 70℃ |
| Fluid | Compressed air |
| Pressure Max. | 10 bar |
| Working Pressure | 0,3÷10 bar |
| Connection | G 1/4 |
| Flow rate at 6 bar 1→2 | 1200 Nl/min |
| Flow rate at 6 bar 2→3 | 2100 Nl/min |
