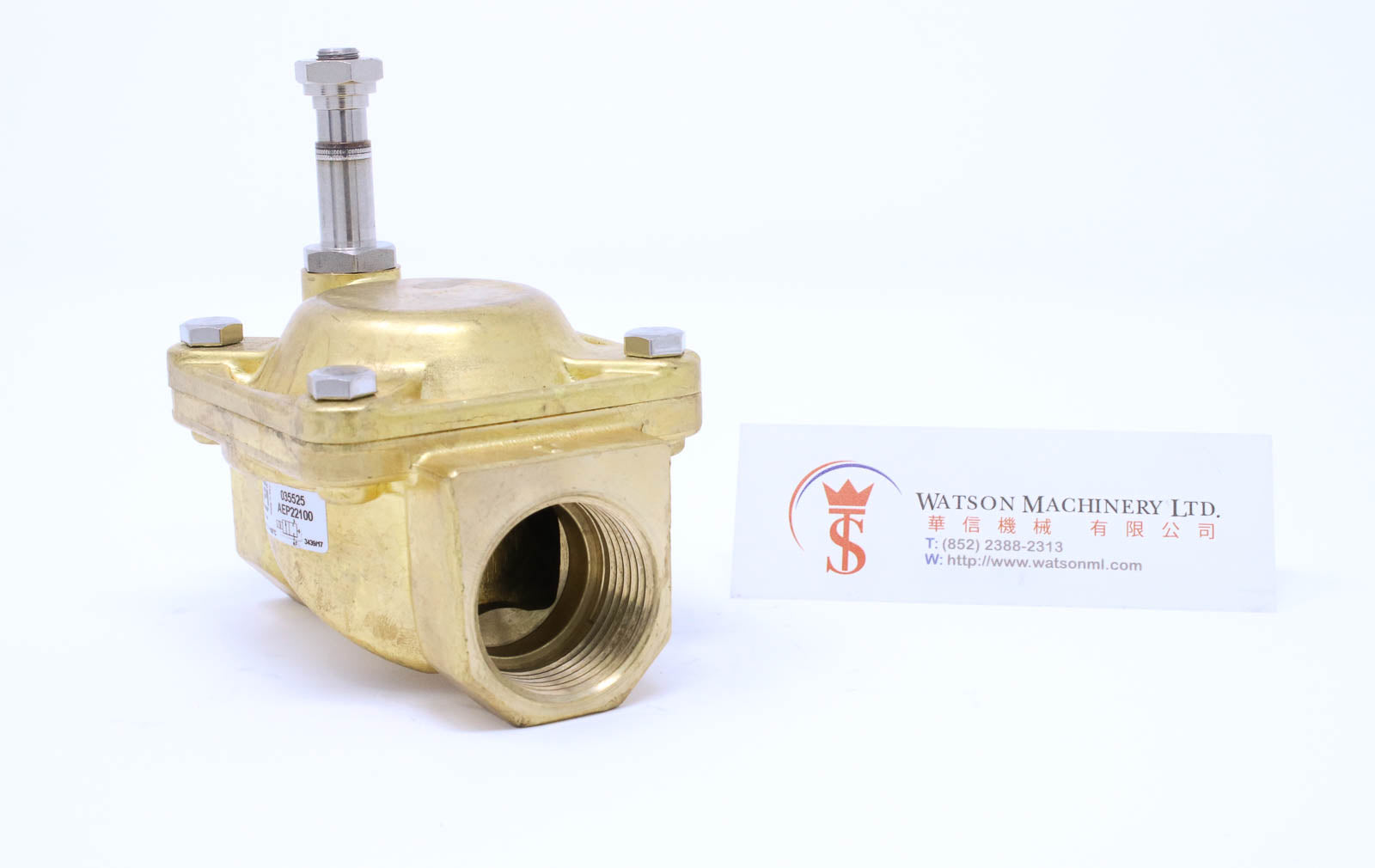

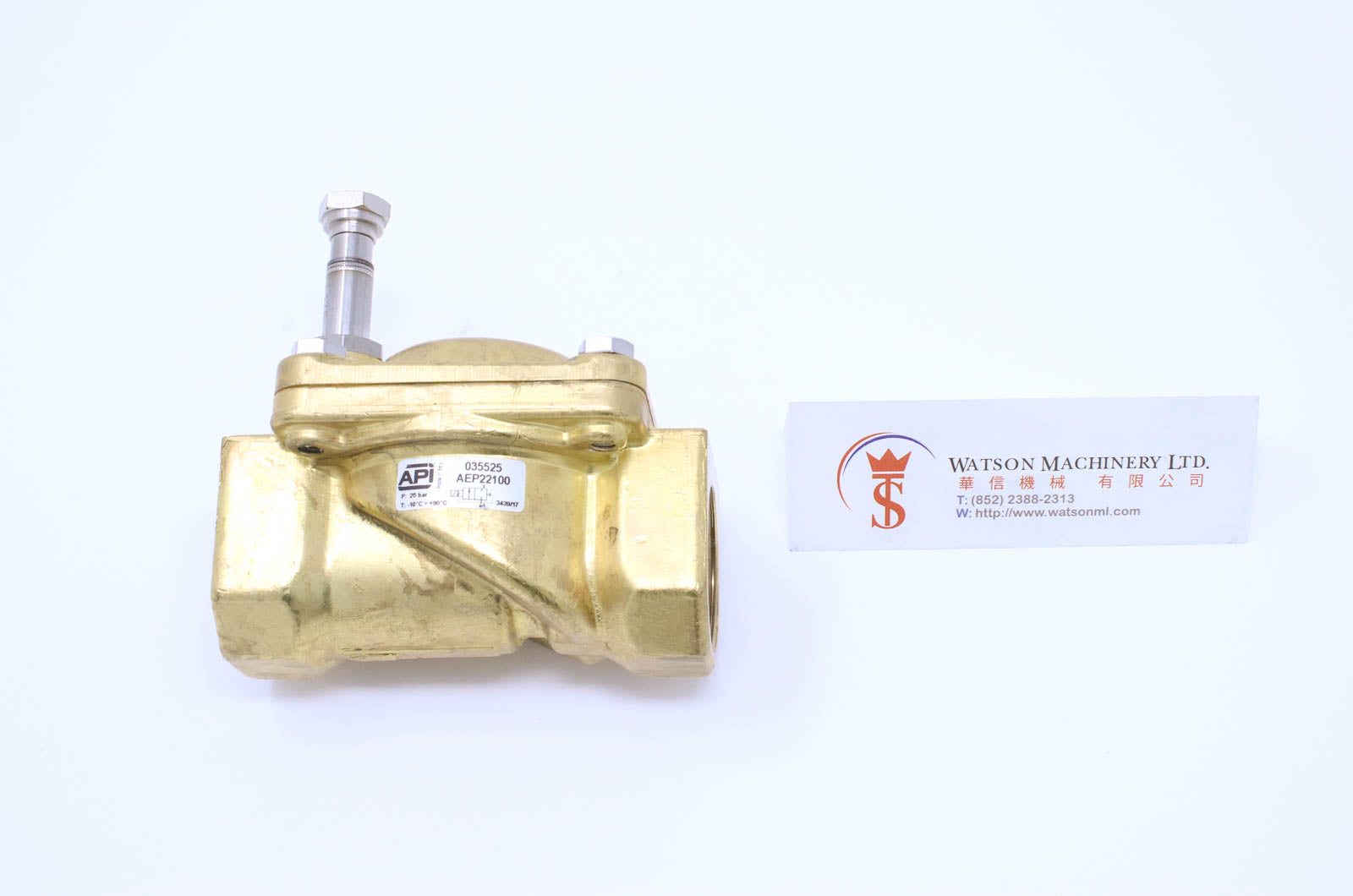

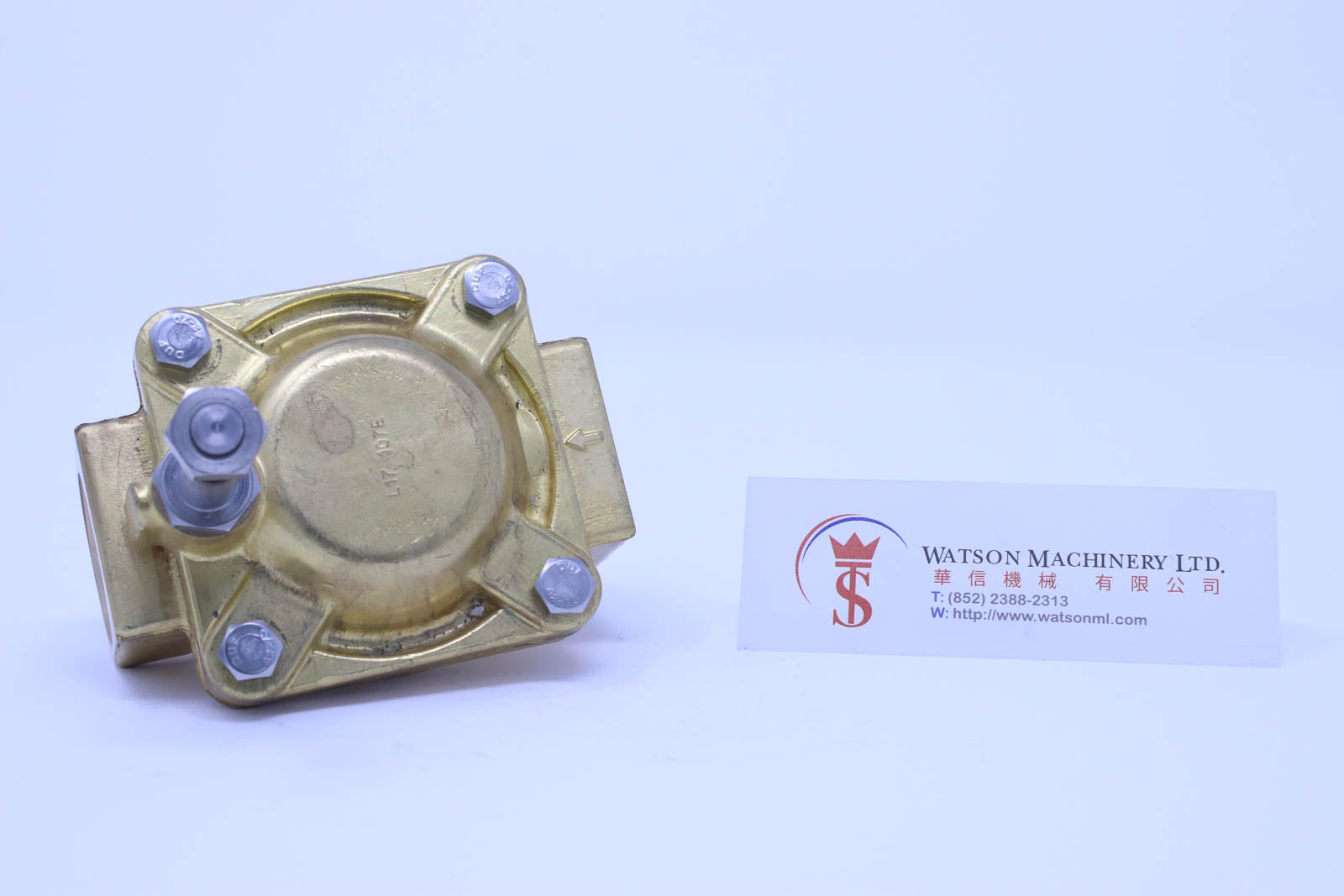

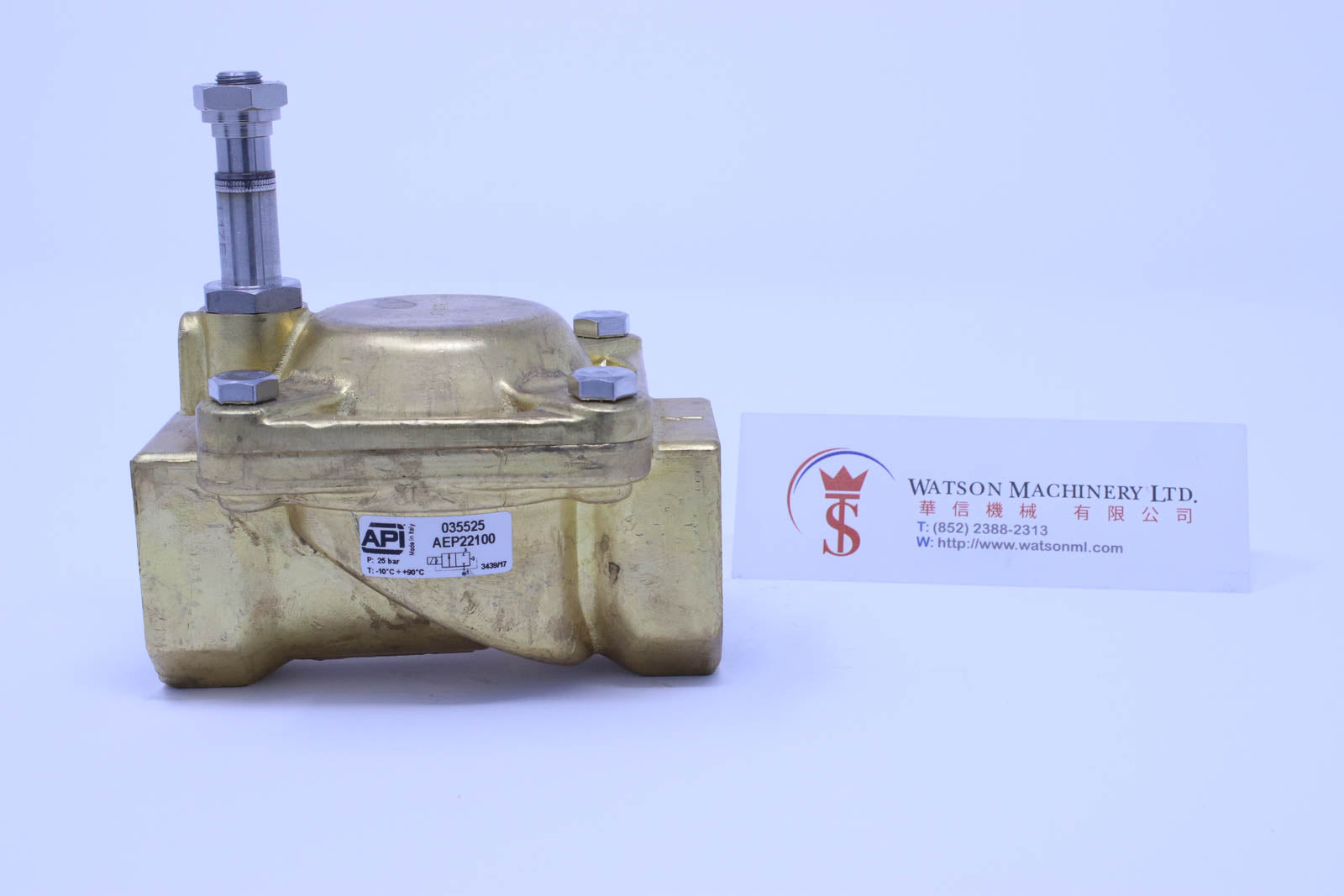

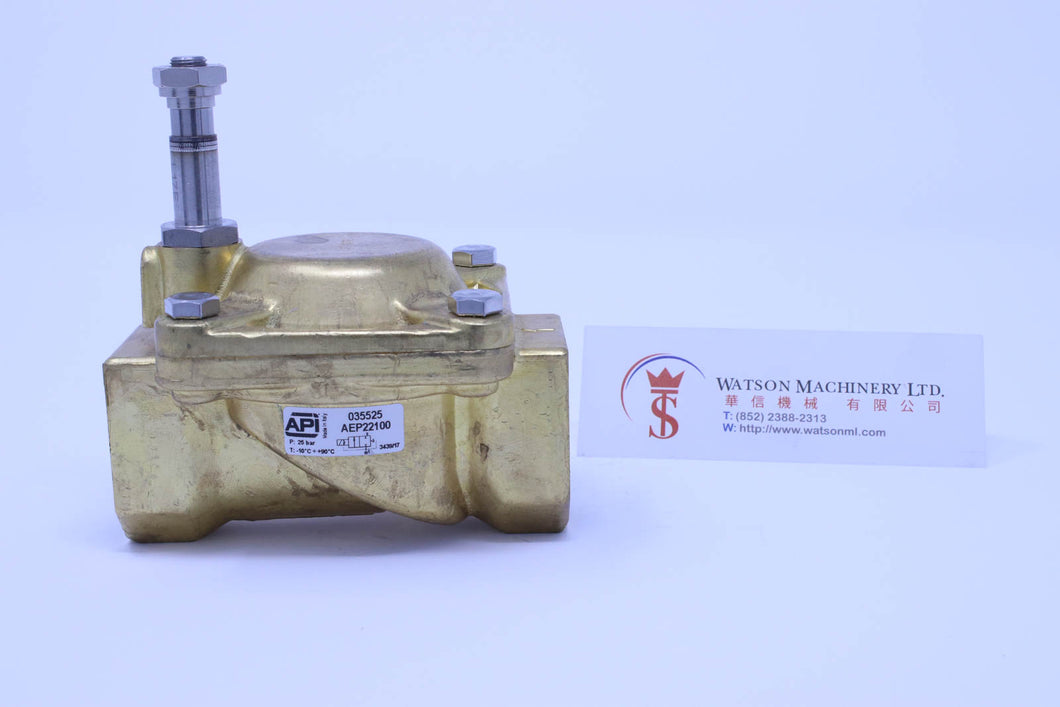

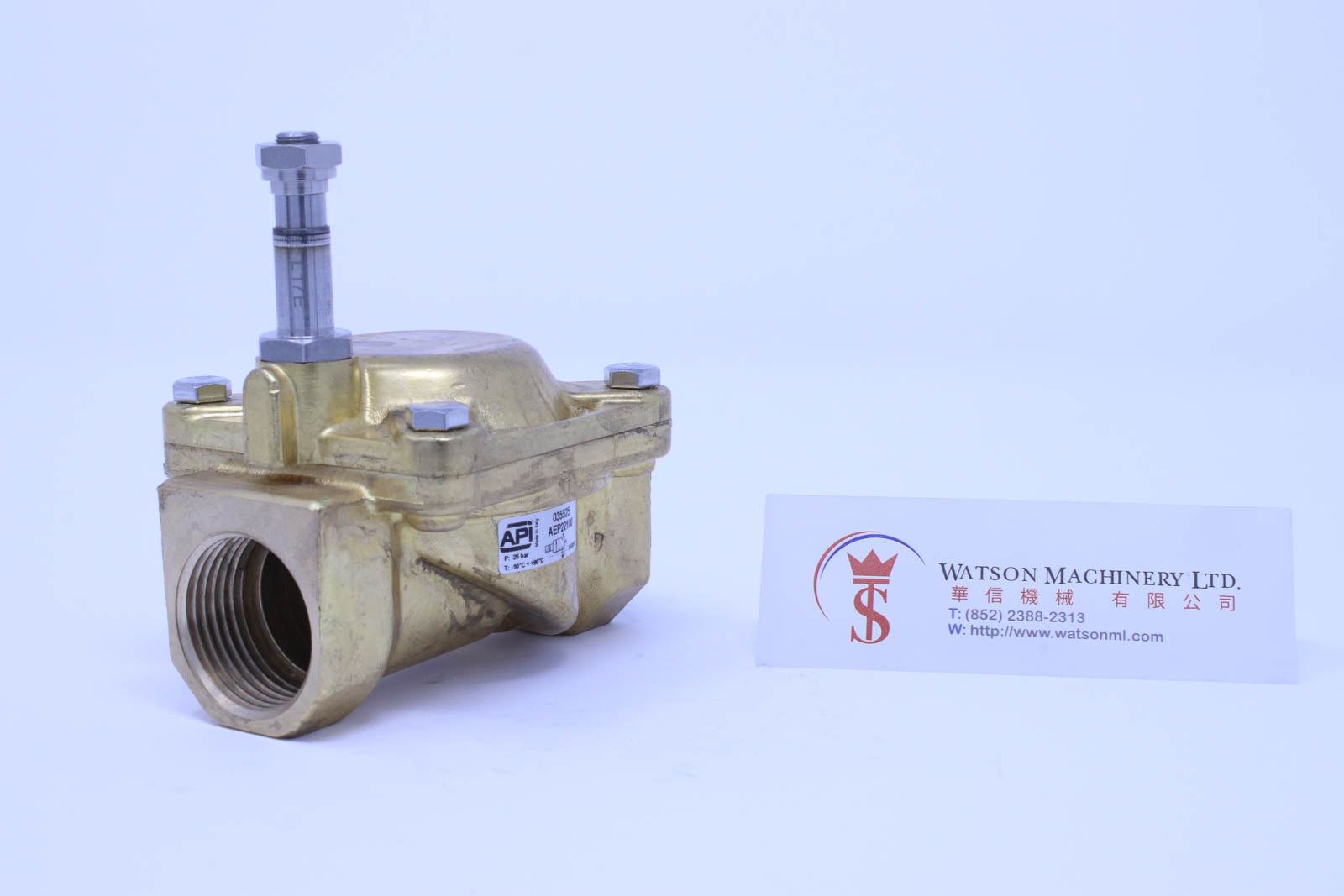

![API AEP22100 Solenoid Valve 1" 25bar 140℃ NC - Watson Machinery Hydraulics Pneumatics](http://www.watsonml.com/cdn/shop/products/IMG_0032_{width}x.jpg?v=1599127901)
MPN 035525, 1" BSP, with EPDM seals (+140℃)

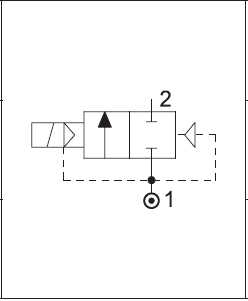

2/2, normally closed, Indirectly operated solenoid valve for water and steam.
Technical Specifications
Fluid | Water and steam. Compressed filtered air with or without lubrication. Lubrication, if be used, must be continued. |
Pressure range | 25 bar |
Fluid maximum viscosity | 25 cSt (mm²/s) |
Orifice | 24 mm |
Flow | 10,2 m³/h |
Mounting | Better with the coil high |
Materials |
Body: Brass |
