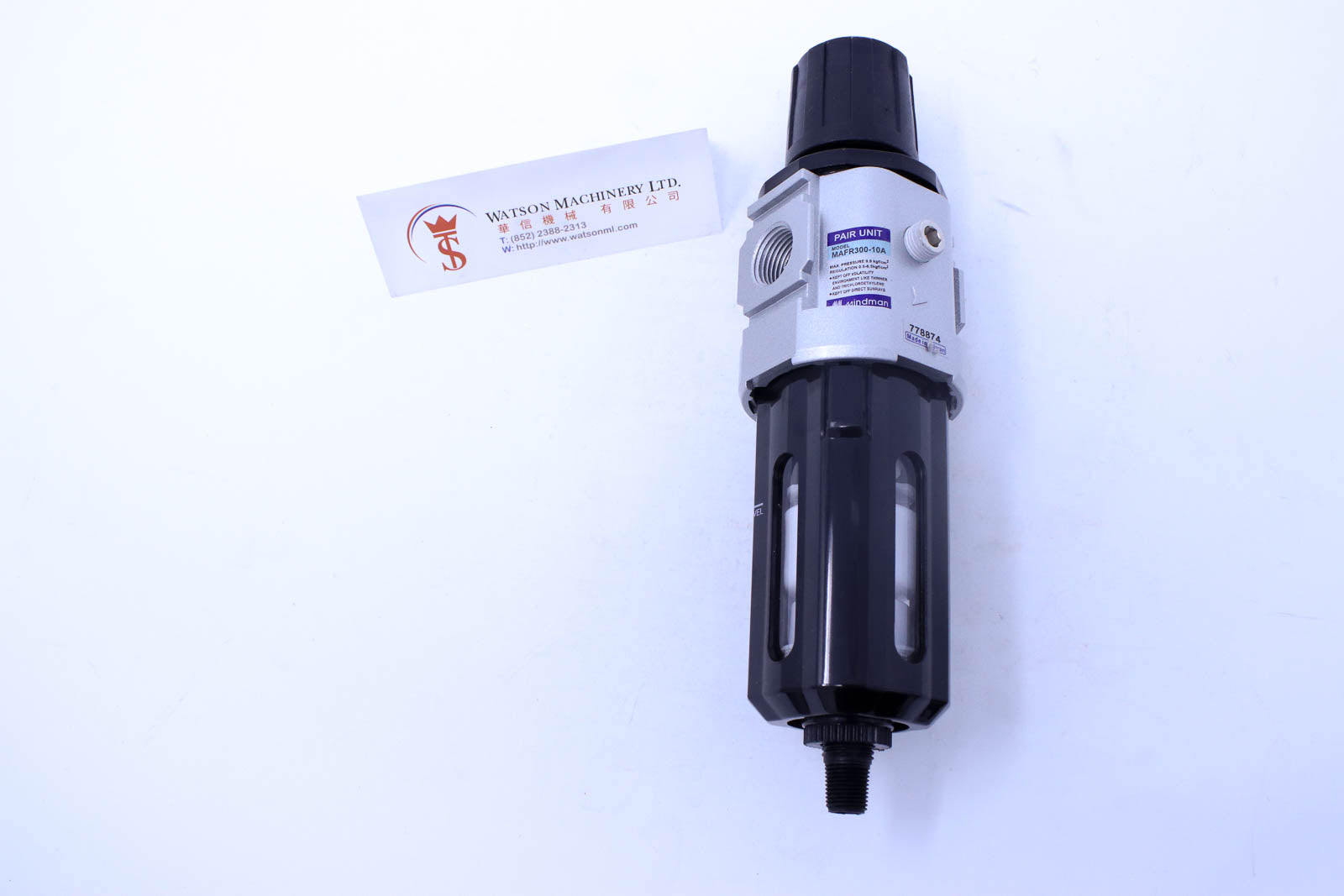

AIR UNIT (F.R UNIT)
MAFR300L series
MAFR300L-10A-D, 3/8, Auto drain
Technical Specifications
Model | MAFR300L |
Bore no. | 8A / 10A |
Port size | 1/4 / 3/8 |
Medium | Air |
Operating perssure range (*) | 0.05~1 MPa |
Proof pressure | 1.5 MPa |
Regulated pressure range | 0.05~0.85 MPa |
Ambient temperature | -5 ~ + 60℃ (No freezing) |
Filter element | Standard: 5μm Option: 40μm |
Drain capacity | 40m³ |
Attachment | Pressure gauge (PG-40), L-type bracket |
