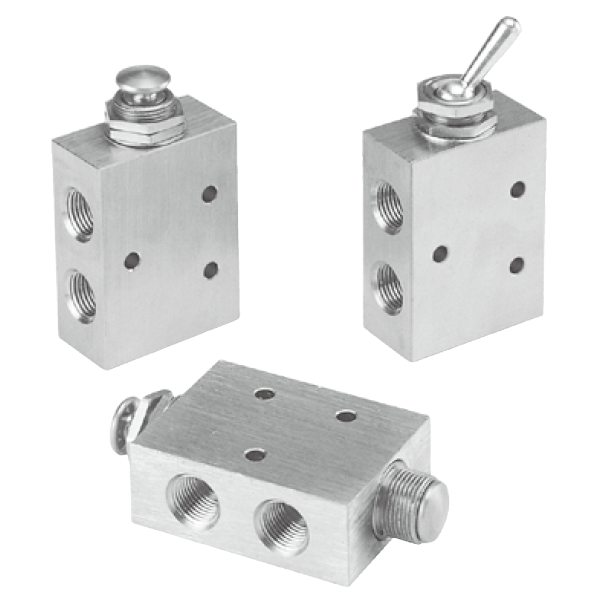

MINDMAN
MVHA-41* series
HAND Valve
MVHA-41PP
Technical Specifications
| Model | MVHA-41V / 41P / 41PP |
| No.of port: | 5 |
| Bore no.: | 6A |
| Port size | Rc 1/8 |
| Medium | Air |
| No. of position | 2 |
| Operating pressure range | 0~0.9 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Effective orifice | 5.5 mm² |
