Transducers and pressure switch

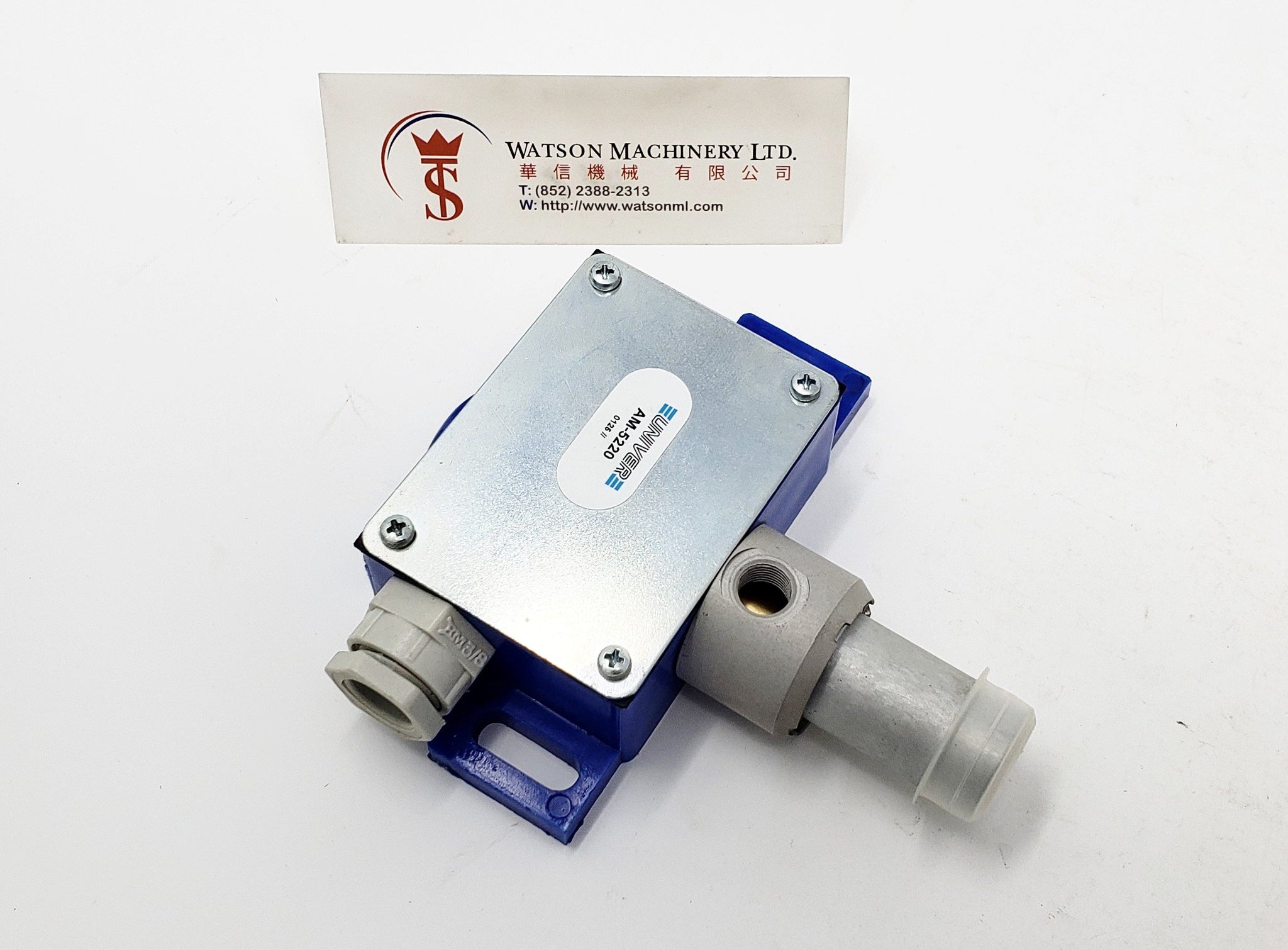

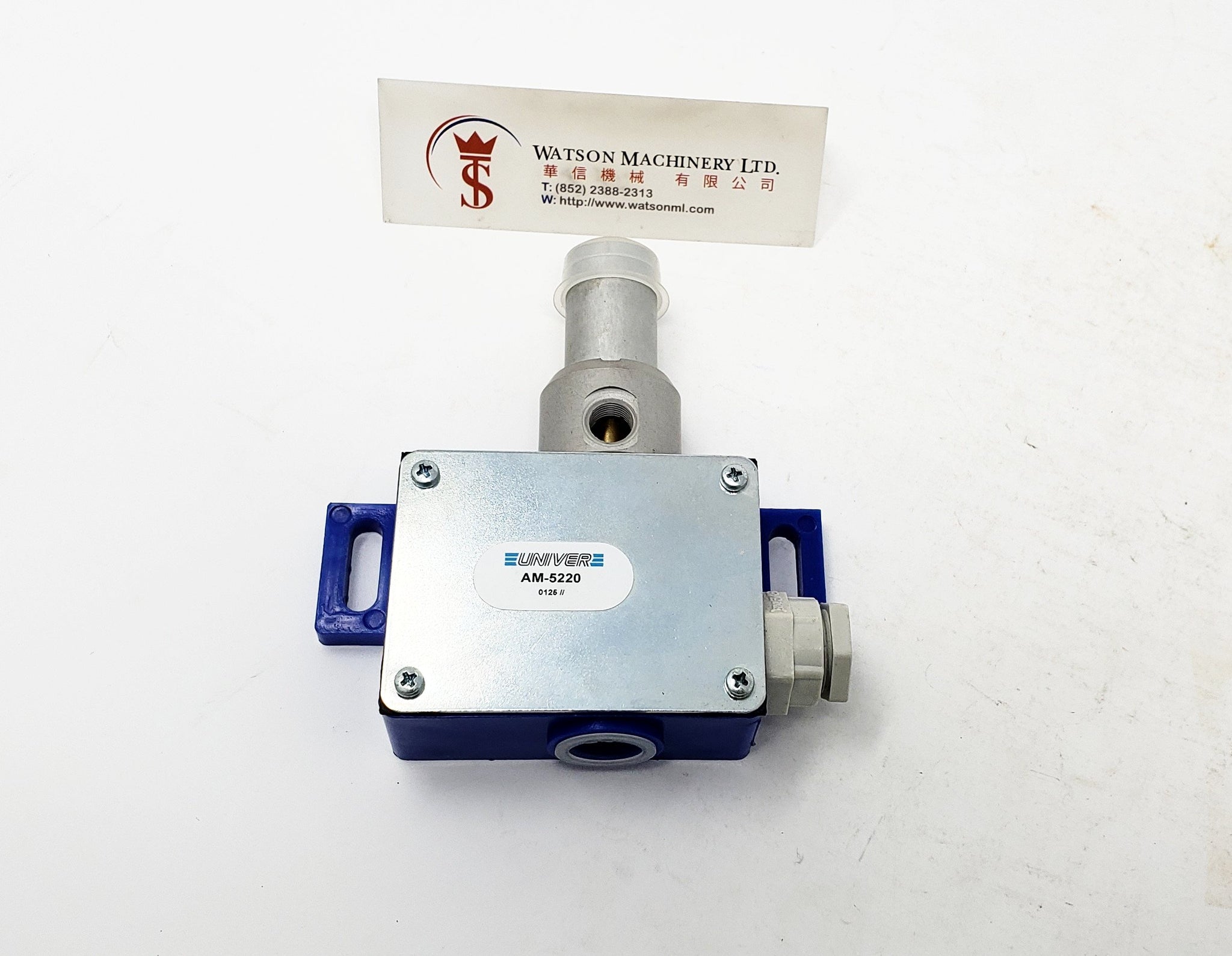

Calibrated (Adjustable) pressure switch
The device is used when there is need of an ON-OFF electric signal at a pre-determined pressure in a plant (example: an electric reply to a solenoid valve).
The above-mentioned pressure value can be calibrated between 1 and 8 bar by means of an adjusting screw.
Body in dielectric material with fitting for wall mounting. IP 65 protection NO or NC function according to the connected terminals.
Capacity: 16* A- 250V 50Hz, 5** A-250V 50Hz, 3A-30V c.c.
* Resistive load
** Inductive load
Ambient temperature: -20÷80 ℃
Pressure: 1÷10 bar
